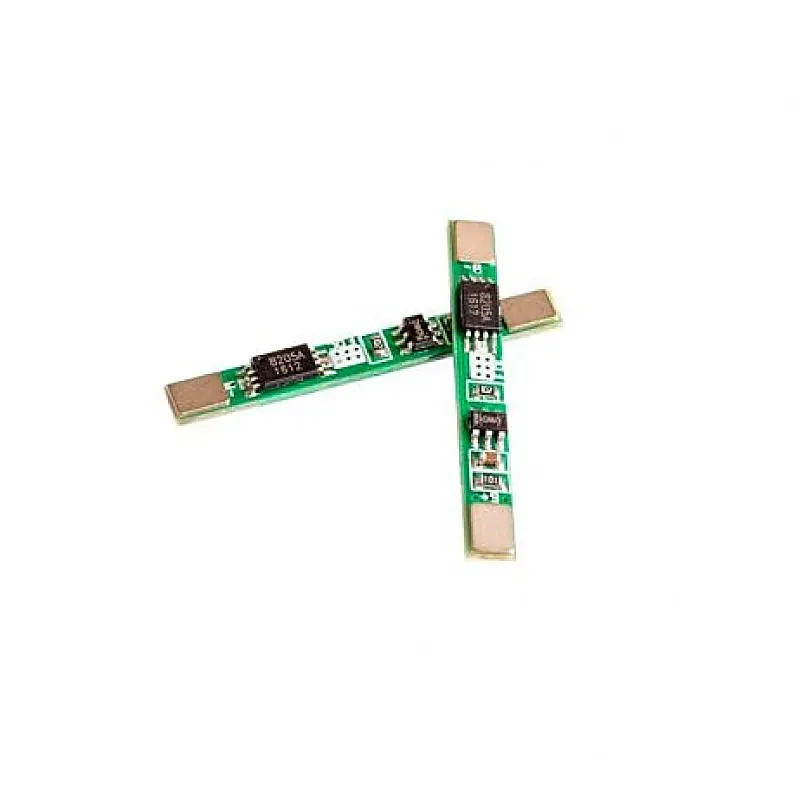

3.7V Lithium Battery Protection Board for Polymer 18650 Bonding Pad (can Spot/Weld) 3A Overcurrent Value
3.7V Lithium Battery Protection Board for Polymer 18650 Bonding Pad (can Spot/Weld) 3A Overcurrent Value
The BMS is used for li-ion battery without balancing function Features: High-accuracy voltage detection circuit; The terminal of the charger using high voltage device; Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit); MOS transistor can control
+ 18% GST (added at checkout)
In stock — 291 units ready
- High-accuracy voltage detection circuit;
- The terminal of the charger using high voltage device;
- Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit);
- MOS transistor can control the battery charge and discharge;
- Over charge voltage: 4.250.05V
- Overcharge release voltage:4.230.05V
- Over-discharge voltage:2.540.1V
- Maximal continuous charging current: 2A
- Maximal continuous Discharging current: 2A
- Over-current protection: 3A
- Size: L40*W4*T3mm
- Weight: 1g
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The BMS is used for li-ion battery without balancing function Features: High-accuracy voltage detection circuit; The terminal of the charger using high voltage device; Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit); MOS transistor can control the battery charge and discharge; Specification: Over charge voltage: 4.250.05V Overcharge release voltage:4.230.05V Over-discharge voltage:2.540.1V Maximal continuous charging current: 2A Maximal continuous Discharging current: 2A Over-current protection: 3A Size: L40*W4*T3mm Weight: 1g Package Includes: 1 x 3.7V Lithium Battery Protection Board (1 piece)
