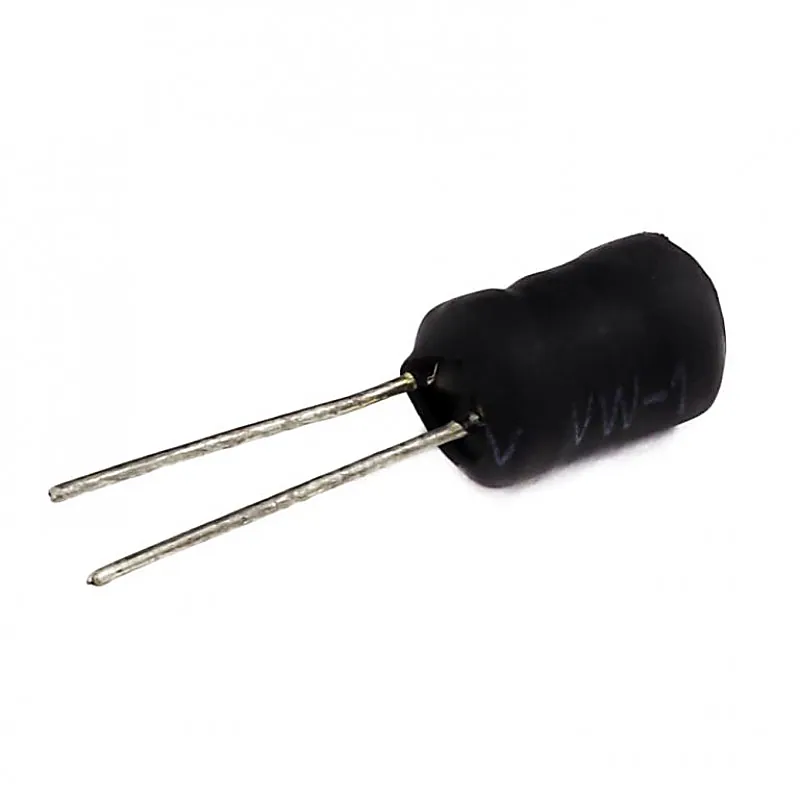

330uH 9x12mm Radial Leaded Power Inductor

330uH 9x12mm Radial Leaded Power Inductor is a small choke coil power inductor. It has a wire wound on the core(magnetic or air), with leads attached to it for through-hole mounting. The power inductor also known as a choke coil, choke or differential mode inductors, is used to limit the alternating current through the coil. It has a high Q factor, high self-resonance frequency, small magnetic flux leakage. Also, the power inductor has good magnetic shielding and is RoHS free. Applications: Motherboards for laptop and desktop computers. DC/DC converter in distributed power systems or VRM Applications. Inductor for general purpose use. Features: Small size. High Q factor. High self-resonance frequency. Small magnetic flux leakage. Magnetically shielded. RoHS free. Package Includes: 1 x 330uH 9x12mm Radial Leaded Power Inductor Additional information Inductance 330H Tolerance(%) 10 Mounting Type Through Hole DC Resistance (DCR)(m) at 20C 0.45 Current Rating (A) 0.5 Frequency(Hz) 1000 Operating Temperature Range (C) -40 to 85 Length (mm) 9 Width (mm) 12 Weight (gm) 1 (approx)
