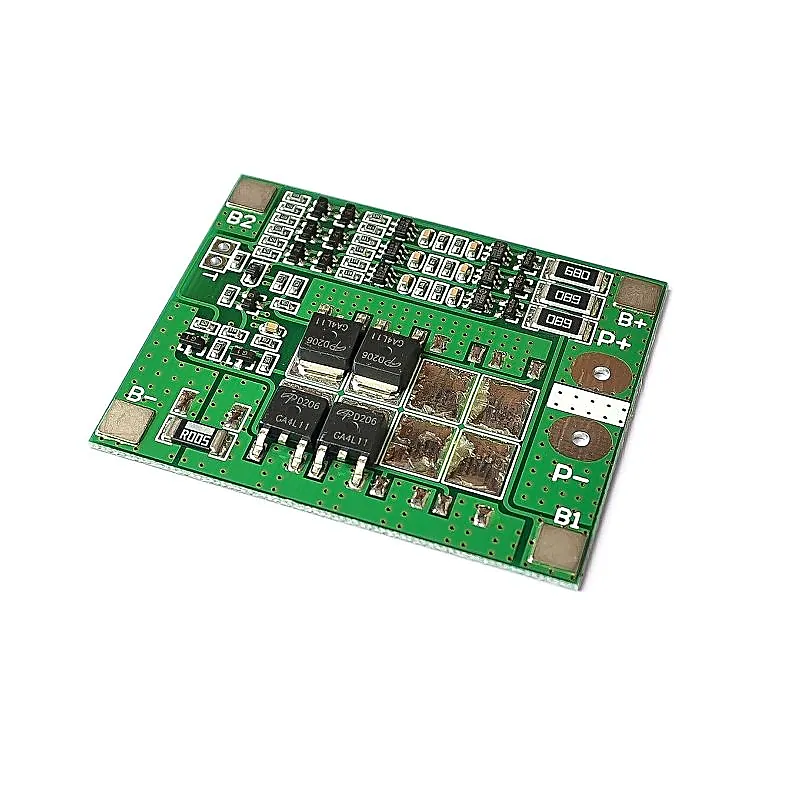

3S 15A 18650 Lithium Battery Protection Board

Battery protection board, as the name suggests battery protection board is mainly rechargeable (Refers to the lithium battery) and protects the integrated circuit board. As the lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with sampling resistor, and a current fuse. Providing all above features this 3S BMS board can combine 3 x 18650 battery to form a battery pack to provide up to 15V DC output at 15A current which can be used for heavy applications. Features: Overcharging and Over Discharging Protection Short circuit protection: Yes Applicable assembly: Nominal 3.7V Batteries / 3 strings. Package Includes: 1 x 3S 15A 18650 Lithium Battery Protection Board Specifications: Model HX-3S-FL25A-A Charging voltage range 12V Over-discharge recovery voltage 2.5v±0.05v, Over-Discharge-Delay-Time 144ms M Maximum Working Current 10A Maximum Peak current 20A Static current Less than 8uA Resistance Less than 4mΩ Length (mm) 56 Width (mm) 45 Height (mm) 2 Weight (gm) 8
