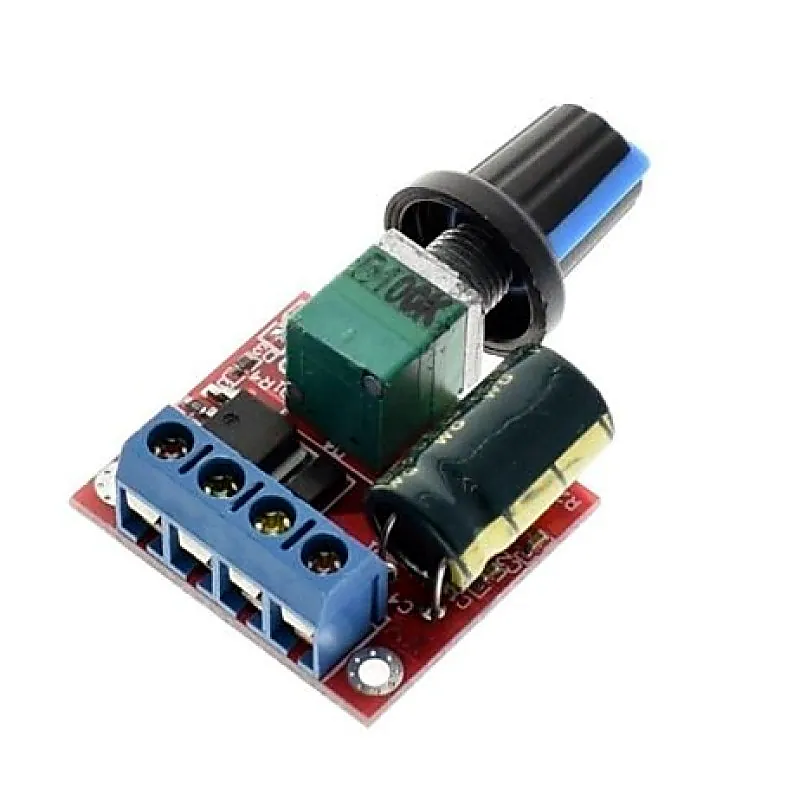

3V 6V 12V 24V 35V PWM 5A DC Motor Speed Regulator

3V 6V 12V 24V 35V PWM 5A DC Motor Speed Regulator is a Mini Style DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). Precautions: DC motor governor input is DC, can not directly connect to the AC (for example home 220V AC), otherwise, it will burn! DC power supply positive and negative terminals do not reverse, otherwise, the governor may be damaged. The motor can be positive or negative when the direction of operation and expectations do not match, you can adjust the line order to change the direction. Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes. Features: Mini DC 4.5-35V 5A PWM Motor Speed Controller. Wide voltage DC motor speed controller. Operating voltage: DC4.5V-35V Output current: 0-5A Output power: 90W (max) PWM duty cycle: 1% -100%. Package Includes: 1 x 3V 6V 12V 24V 35V PWM DC Motor Speed Regulator Specifications: Operating voltage DC 4.5V-35V Output current 0-5A Output power 90W (max) Quiescent current 7uA (standby) PWM duty cycle 1% -100% PWM frequency 20khz Dimension(mm) 30mm x 26mm x 14mm (Without Handle)
