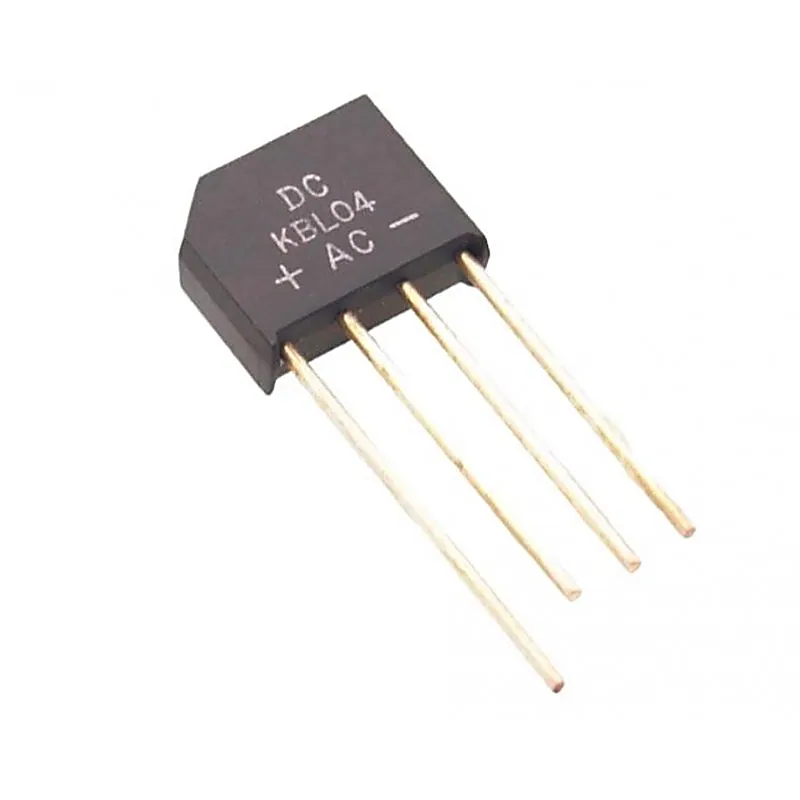

KBL04 4A 400V Bridge Rectifier

The KBL04 is a 4mp Single-Phase Bridge Rectifier and is used in ac-to-dc bridge full wave rectification for monitor, TV, printer, SMPS, adapter, audio equipment, and home appliances applications. Features :- • UL recognition, file number E54214 • Ideal for printed circuit boards • High surge current capability • Plastic-passivated junction • High case dielectric strength of 1500 VRMS • Solder dip 275 °C max. 10 s, per JESD 22-B106 Mechanical Characteristics • Case: KBL • Molding compound meets UL 94 V-0 flammability rating Base P/N-E4 - RoHS-compliant, commercial grade • Terminals: silver plated leads, solderable per J-STD-002 and JESD22-B102 • Polarity: as marked on body • Mounting Torque: 10 cm-kg (8.8 inches-lbs) max. • Recommended Torque: 5.7 cm-kg (5 inches-lbs) Specification:- Symbol Parameter Value Units VRRM Peak Repetitive Reverse Voltage 400 V VDC Maximum DC blocking voltage 400 V VRMS Maximum RMS voltage 280 V IF(AV) Maximum average forward current at TA = 50 °C 4 A IFSM Non-Repetitive Peak Forward Surge Current 200 A TJ Operating Junction Temperature Range − 50 to +150 °C Tstg Storage Temperature Range − 50 to +150 °C Related Document:- KBL04 Rectifier Data Sheet
