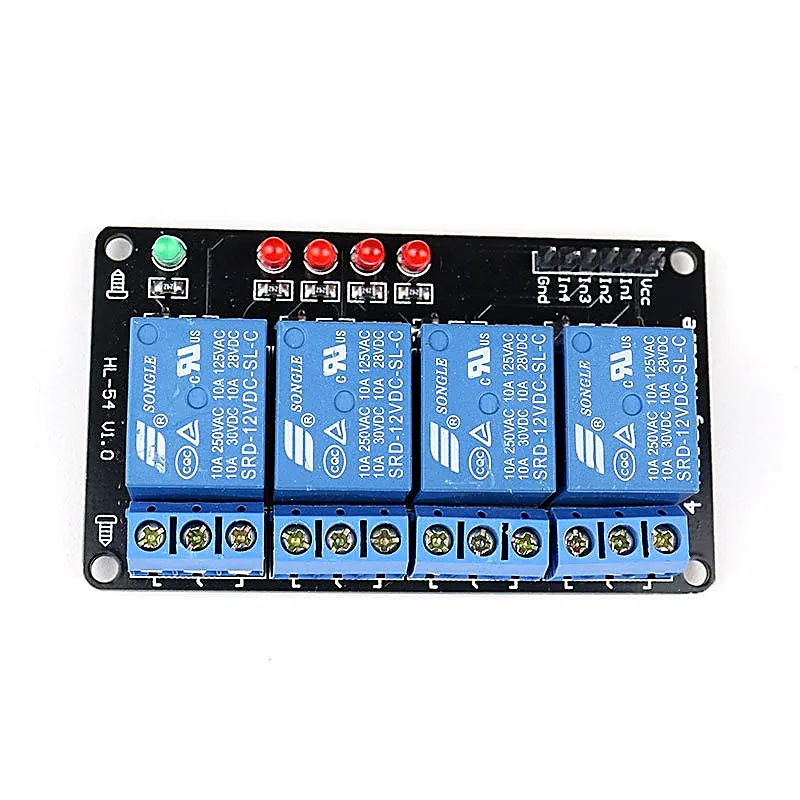

4 Channel 12V Relay Module
4 Channel 12V Relay Module
This is a 4-Channel Relay interface board that allows you to control various appliances, and other equipment's with large current. It can be controlled directly by Micro-controller (Arduino, Raspberry Pi, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic). Features: 4-Channel Relay interface board an
+ 18% GST (added at checkout)
In stock — 41 units ready
- 4-Channel Relay interface board and each one needs 15-20mA Driver Current.
- Both controlled by 12V and 5V input Voltage.
- Equipped with high-current relay, AC250V 10A ; DC30V 10A.
- Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic active low).
- Indication LEDs for Relay output status.
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This is a 4-Channel Relay interface board that allows you to control various appliances, and other equipment's with large current. It can be controlled directly by Micro-controller (Arduino, Raspberry Pi, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic). Features: 4-Channel Relay interface board and each one needs 15-20mA Driver Current. Both controlled by 12V and 5V input Voltage. Equipped with high-current relay, AC250V 10A ; DC30V 10A. Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic active low). Indication LEDs for Relay output status. Package Includes: 1 x 4 Channel 12V Relay Module Specifications :- Trigger Voltage (VDC) 12 Trigger Current (mA) 20 Switching Voltage (VAC) 250@10A Switching Voltage (VDC) 30@10A Operating Temperature (C) -40 to 85 Opt. Relative Humidity(RH) 20% 85% Storage condition () 65 to 125 Length (mm) 74 Width (mm) 43 Height (mm) 17 Weight (gm) 49
