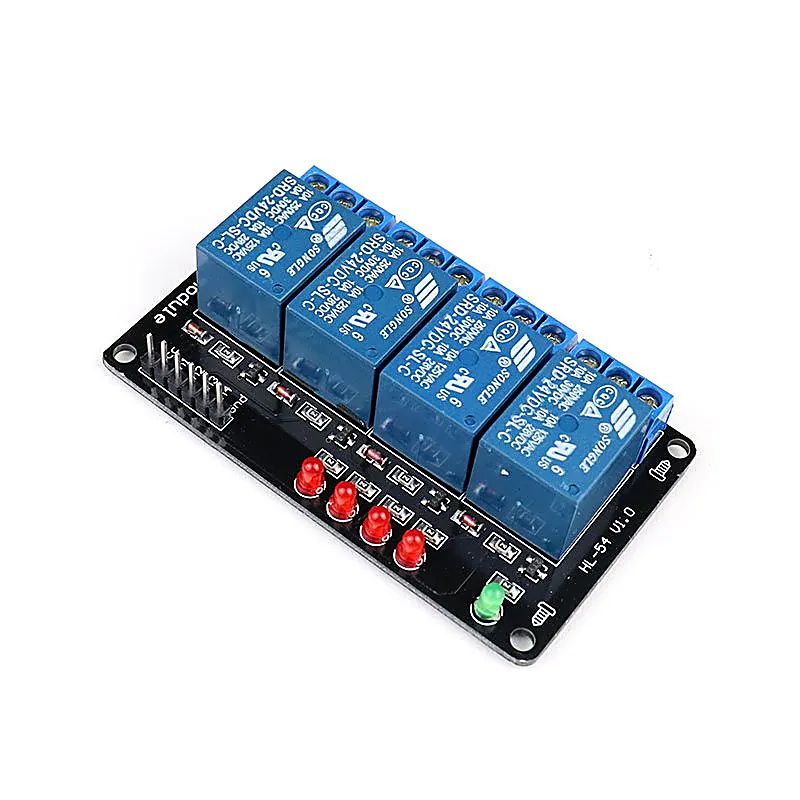

4 Channel 24V Relay Module
4 Channel 24V Relay Module
This is a 4 Channel 24V Relay Module. Using a high-power relay, the maximum control load DC 30V 10A / AC 250V 10A. In line with international safety standards, the control area and the load area with isolation slot. Each channel has a relay on the LED indication. Features: Header Connector for conne
+ 18% GST (added at checkout)
In stock — 36 units ready
- Header Connector for connecting power and trigger voltage.
- LED on each channel indicates relay status.
- Power Battery Terminal (PBT) for easy relay output and aux power connection.
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This is a 4 Channel 24V Relay Module. Using a high-power relay, the maximum control load DC 30V 10A / AC 250V 10A. In line with international safety standards, the control area and the load area with isolation slot. Each channel has a relay on the LED indication. Features: Header Connector for connecting power and trigger voltage. LED on each channel indicates relay status. Power Battery Terminal (PBT) for easy relay output and aux power connection. Package Includes: 1 x 4 Channel 24V Relay Module Specifications :- Trigger Voltage (VDC) 24 Trigger Current (mA) 20 Switching Voltage (VAC) 250@10A Switching Voltage (VDC) 30@10A Operating Temperature (C) -40 to 85 Opt. Relative Humidity(RH) 20% 85% Storage condition () 65 to 125 Length (mm) 74 Width (mm) 44 Height (mm) 17 Weight (gm) 50
