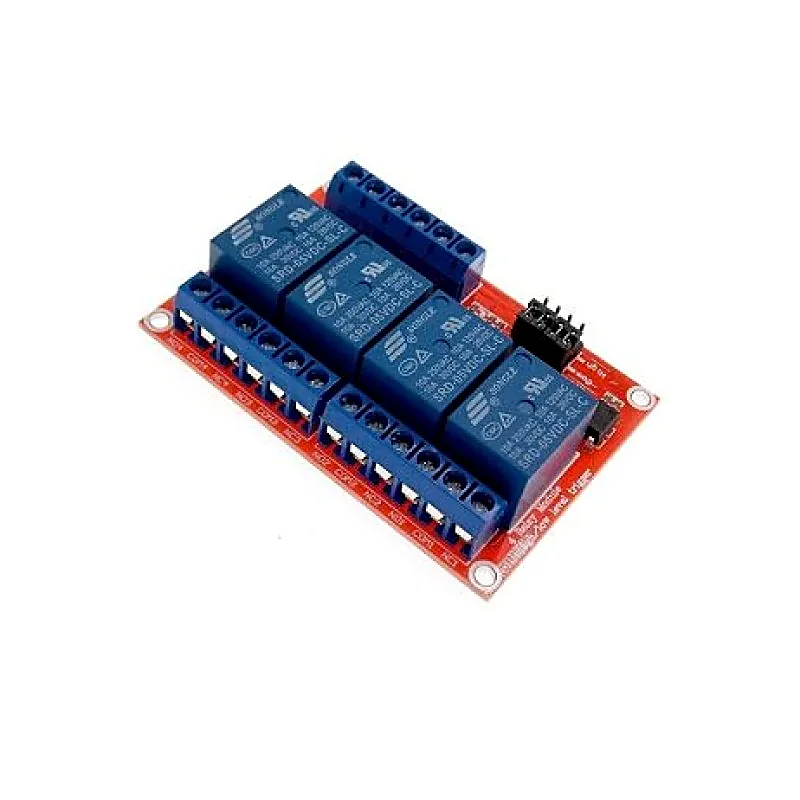

4 Channel Relay Module 5V High and Low Level Trigger Relay Module

This 4-Channel Relay Module 5V High and Low-Level Trigger Relay Module comes with max Load for Output: AC 250V/10A, DC 30V /10A. Trigger current of 20 mA can be used to all kinds of single-chip microcomputer IO control triggering, normally opening and closing two work modes. By switching the trigger level selection terminal to set 3-5V high level or 0-1.5V low-level trigger controlled, Adopting patch piece opto-isolator, green power light, red relay status light, strong drive capability, stable performance, and clear work conditions This product is known as the 4 Channel 5V Relay Module, the 12V 4-Channel Relay Module, and the 5V 4 Channel Relay Optocoupler Isolation Module. Trigger Mode Configuration: The module has a trigger level selection terminal; for each relay, the trigger level can be individually controlled, through the short-circuit cap to control. COM side is common, in the middle; When the LOW (L) terminal is connected to the common terminal, it is a low-level trigger; when the HIGH (H) terminal is connected to the common terminal, it is a high-level trigger. Input Interface: 1. DC+: 5V positive power supply 2. DC-: 5V negative power supply 3. IN: corresponding with trigger signal level of relay Output Interface: 1. NO: normally open interface 2. COM: common interface 3. NC: normally close interface Note: The actual product may vary in slight variation in color and components with the image shown depending upon quantity availability. Features and Specifications: Work Voltage: 5VDC Quiescent Current: 5 mA Max Current: 190 mA Trigger Current: 3-5 mA Low-Level Trigger Current: 0-1.5V High-Level Trigger Current: 3-5V 4 Fixed Holes for Screw: Diameter 3.1mm Length: 73 mm Width: 50 mm Height: 18.5 mm Weight: 57g Package Includes: 1 x 4 Channel Relay Module 5V High and Low-Level Trigger Relay Module
