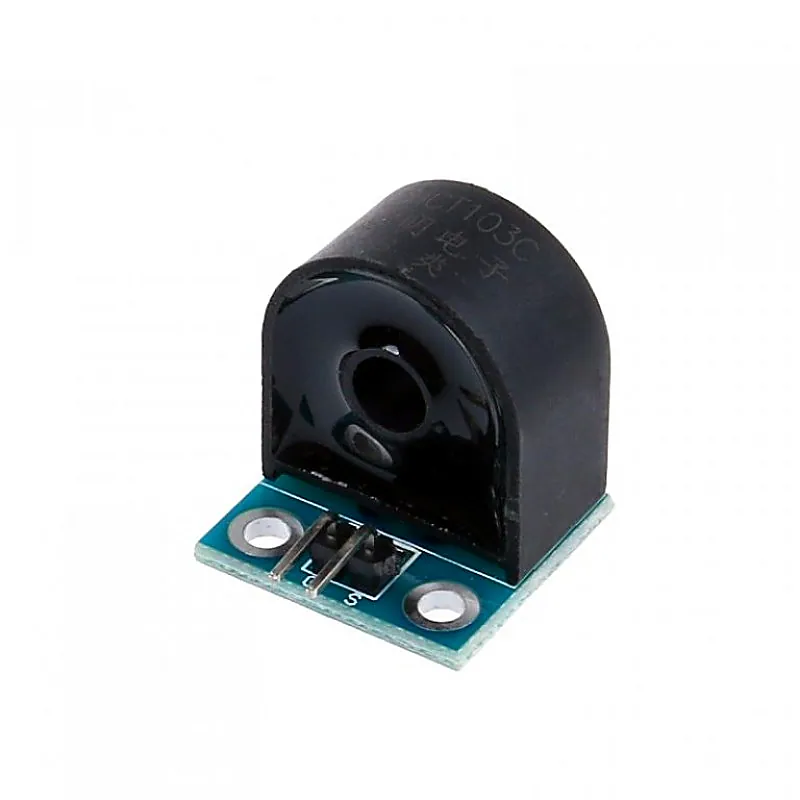

5A Single Phase AC Current Sensor Module

5A range of single-phase ac current sensor module can measure AC currents less than 5A, the corresponding analog output 5A/5mA. It has Onboard sampling resistor and precision micro current transformer do accurate sampling for the signal and appropriate compensation, and other functions. The module can measure within 5A current communication, corresponding to output analog quantity can be adjusted. Features : Onboard precision microcurrent transformer. Onboard sampling resistor. The module can measure AC currents less than 5A, the corresponding analog output 5A/5mA. Specifications:- Rated Input Current (A) 5 Rated Output Current (mA) 5 The linear range 0 ~ 10A (100 ohms) Change 1000: 1 Linearity 0.2% Precision Rating 0.2 Sealing material Epoxy Resin Operating Temperature (C) -40 to +90 Length (mm) 18 Width (mm) 19 Height (mm) 22 Weight (gm) 8 Package Includes : 1 x5A range of single-phase ac current sensor module.
