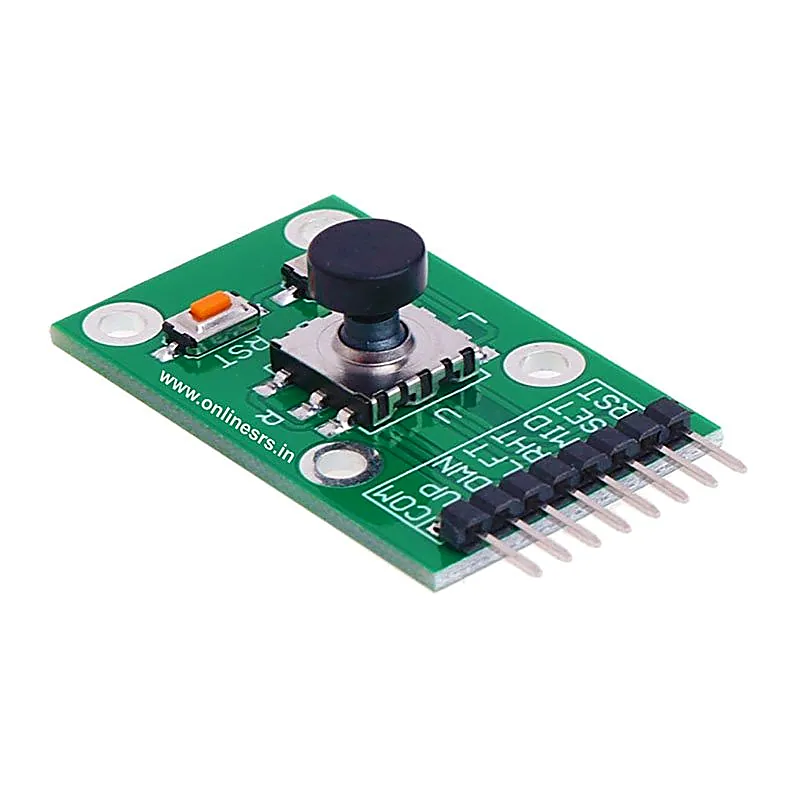

5D Rocker Joystick for Arduino MCU AVR Game

Do you need a 5D navigation button module? Here we have Five Direction Navigation Button Module especially for you. You can use it for MCU AVR Game 5D Rocker Joystick and as an Independent Keyboard for Arduino Joystick Module. Pin Description: COM (Common end): VCC or GND connected to the MCU development board UP (Up direction button): Connect to IO pin of the MCU DWN (Down direction button): Connect to IO pin of the MCU LFT (Left direction button): Connect to IO pin of the MCU RHT (Right direction button): Connect to IO pin of the MCU MID (Middle direction button): Connect to IO pin of the MCU SET (Set button): Connect to IO pin of the MCU RST (Reset button): Connect to IO pin of the MCU Features: supports up/down/left/right/middle with extra set and reset button 2V-9V wide working voltage 7 IO port pinout compatible for most MCU development board Package Includes: 1 x Five Direction Navigation Button Module Specifications: Operating Voltage (VDC) 2 ~ 9 Operating Temperature Range(°C) 40 to 85 Length (mm) 40 Width (mm) 25 Height (mm) 12 Weight (gm) 4
