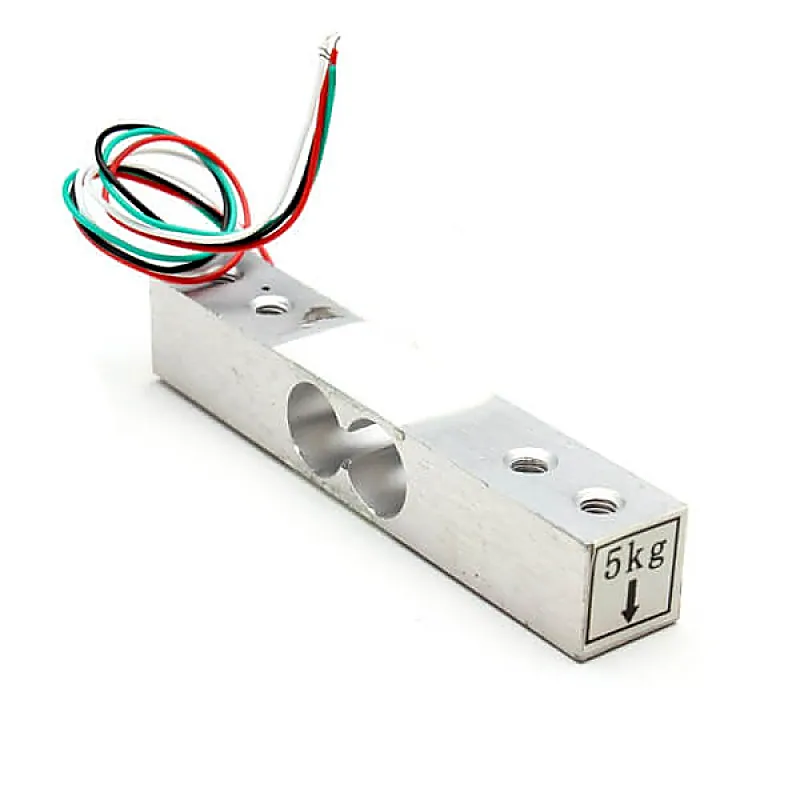

5Kg Load cell - Electronic Weighing Scale Sensor

A load cell is a transducer that is used to create an electrical signal whose magnitude is directly proportional to the force being measured. The various types of load cells include hydraulic load cells, pneumatic load cells and strain gauge load cells. This is a standard load cell for measuring weight upto 5 Kg. The output of the load cell is in mili-volts and cannot be directly measured by a micro-controller. So an ADC with high resolution or an instrumentation amplifier is required to make the output of the load cell readable to a micro-controller. Specifications:- Capacity: 5KG Rated output(MV/V): 2.0±0.15 Accuracy class: C2 Maximum number of laod cell verification intervals(N max): 2000 Minimum number of laod cell verification intervals(Vmin): EMax/5000 Combined error(%RO): <±0.030 Creep(%RO/30min): 0.03 Temperature effect on sensitivity(%RO/°C): 0.0016 Temperature effect on zero(%RO/°C): 0.003 Zero balance(%RO): 1.0 Input resistance(O): 402±6 Output resistance(O): 350±3 Insulation resistance(MO<50V>): 5000 Recommended excitation voltage(V): 10~15 Compensated temperature range(°C): -10~+40 Operating temperature range(°C): -35~+80 Safe overload(%RO): 150 Ultimate overload(%RO): 200 Load cell material: Aluminium Connecting cable: ø4.2x350mm Method of connecting wire: Red(+),Black(-),Green(+),White(-) Applications:- Electronic platform scale Digital scale Parcel post scale Electronic balance
