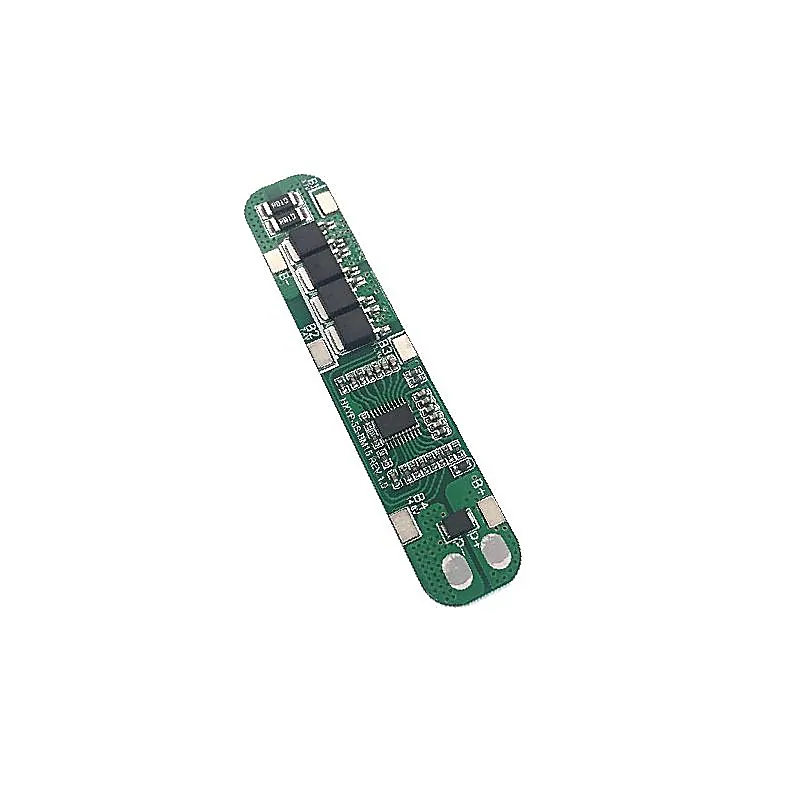

5S 15A 18650 Lithium Battery Protection Board

BMS (Battery Management System) a battery management system that is designed to monitor the status of batteries, control the process of charging/discharging the battery etc. Five batteries (18650) can be connected simultaneously to this charge-discharge controller module. The module has protection against short circuit, overcharge and over-discharge. One of the functions of the charge controller is to turn off the power supply for the batteries when the maximum capacity of at least one battery is reached. This BMS controller is designed for more than 30,000 hours of operation. The maximum allowable current is 25 A. If the maximum permissible value of the supply voltage is exceeded, the charge controller activates the protection mode. In order to restore the module, it is necessary to re-apply voltage to the input of the BMS board or wait a while until the charge controller automatically disables protection. Features: Small size designed for a four-cell battery pack. Simple and convenient circuit for easy connections Over-charge/Over-discharge Protection. Package Includes: 1 x 5S 15A 18650 Lithium Battery Protection Board Specifications: Model HXYP-5SBM15 REV1.0 Charge voltage 21V Charging current 15A(max) Continuous Discharge Current 15A(max) Instantaneous discharge current 25A Over-charge detect 4.28 ± 0.05V Protect delay 0.5s Over-charge release 4.28 ± 0.05V Over-discharge Protect Over-discharge detect: 2.55 ± 0.08V Over-discharge detect delay: 0.1s Release voltage: 2.90.1V Short-circuit Protect Protect condition: Cut load Detect delay: 250uS Release condition: Cut load Over-current Protect Detect voltage: 150mV Detect delay: 9MS Current detect: 303A Release condition: Cut load Inner Resistance: 20m Self-consumption Working current: 30uA Sleep current: (when over-charge)10uA Working Temperature Range: -30-+80 °C Length (mm) 90.46 Width (mm) 17.30 Height (mm) 3.6 Weight (gm) 5
