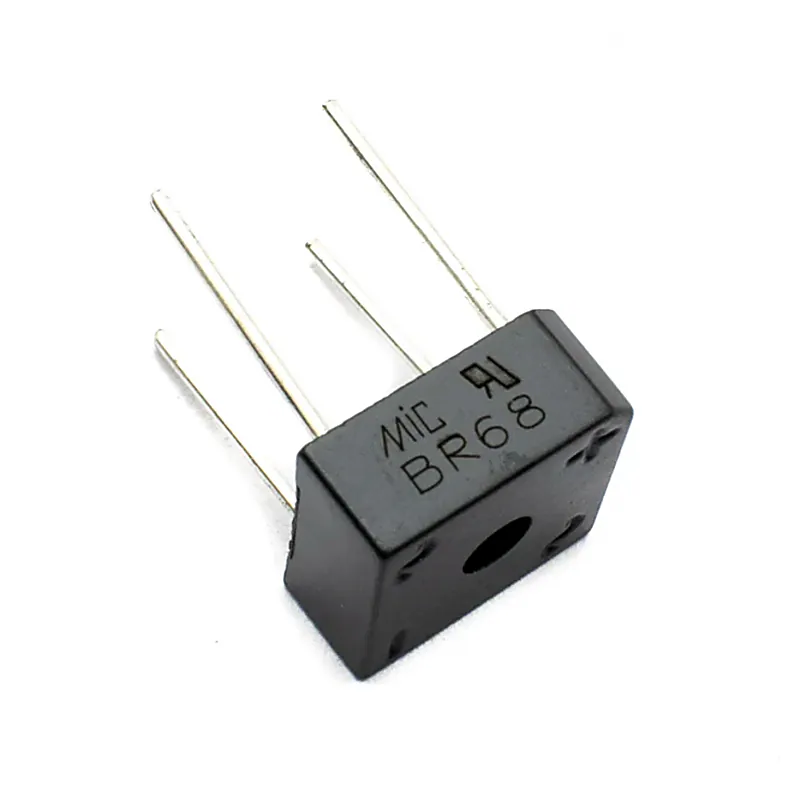

BR68 6A 800V Bridge Rectifier
BR68 6A 800V Bridge Rectifier
The BR68 is a Single Phase 6 Amp Bridge Rectifier. Its Reverse Voltage Rating is 800V and forward Voltage rating is 1V. It is 4 Pin through hole type rectifier. Features:- • Ideal for printed circuit board • LOW forward voltage drop • LOW leakage current • Types from 600 V up to 800 V • Not ESD Sens
+ 18% GST (added at checkout)
In stock — 1212 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The BR68 is a Single Phase 6 Amp Bridge Rectifier. Its Reverse Voltage Rating is 800V and forward Voltage rating is 1V. It is 4 Pin through hole type rectifier. Features:- • Ideal for printed circuit board • LOW forward voltage drop • LOW leakage current • Types from 600 V up to 800 V • Not ESD Sensitive Mechanical Characteristics:- • Case: Molded plastic body • Mounting: Hole thru for #6 screw • Mounting position: Any • Lead: As marked Specification:- Symbol Parameter Value Units VRRM Peak Repetitive Reverse Voltage 800 V VDC Maximum DC blocking voltage 800 V VRMS Maximum RMS voltage 560 V TJ Operating Junction Temperature Range − 65 to +125 °C Tstg Storage Temperature Range − 65 to +150 °C Related Document:- BR68 Rectifier Data Sheet
