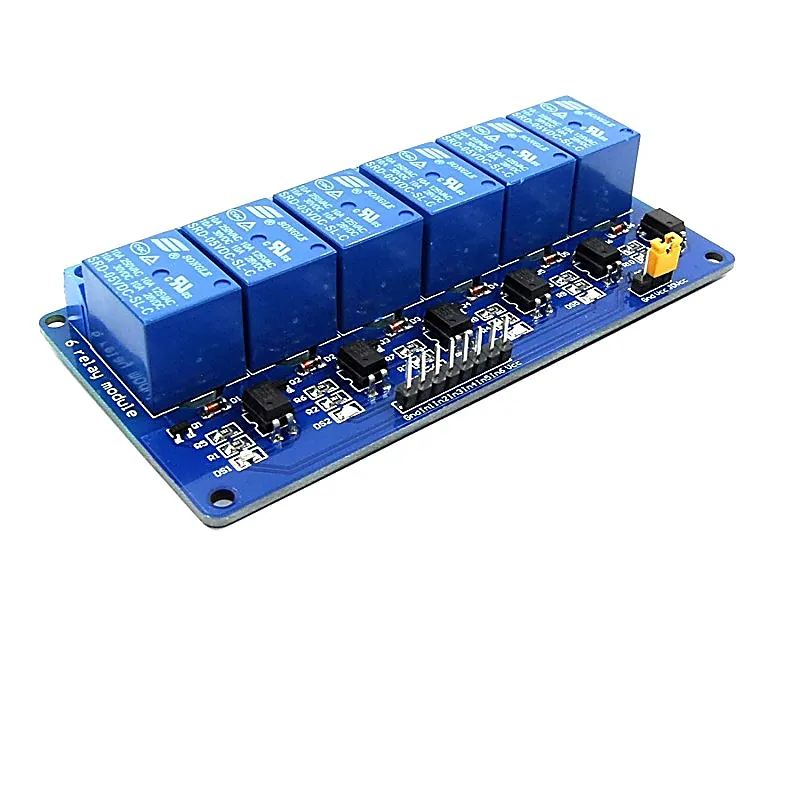

6 Channel 5V Relay Module with Optocoupler

It is a 6 Channel 5V Relay Module with Optocoupler. The relay normally open interface maximum load: AC 250V/10A, DC 30V/10A.With optocoupler isolation, strong drive capability, stable performance; trigger current 5mA, module working voltage: DC 5V.Each channel of the module can be triggered by a jumper to set a high level or a low level. Fault-tolerant design, even if the control line is disconnected, the relay will not move. With status indicator: power (green), 6-channel relay status indicator (red).All module size interfaces can be directly connected through the terminal block, which is convenient and practical. Features: 6-way relay output module contact capacity is 10A 250V. input IN1, IN2, IN3, IN4, IN5, IN6 signal, a low level is effective. Using single-chip design, reliable performance, strong anti-interference, no false triggering, superior performance. The trigger terminal has optocoupler isolation, the independent external power supply can trigger completely isolated. Each relay has an activity indicator light. With 4 fixed bolt holes, easy installation. Support all SCM control. It is applicable to the industrial sector, PLC control and home intelligent control. Package Includes: 1 x 6 Channel 5V Relay Module with Optocoupler Specifications :- Operating Voltage (VDC) 3.3 ~ 5 Supply Current (A) 20mA Trigger Voltage (VDC) 5 Switching Voltage (VAC) 250@10A Switching Voltage (VDC) 30@10A Operating Temperature (C) -40 to 85 Storage condition () 65 to 125 Length (mm) 104 Width (mm) 53 Height (mm) 17 Weight (gm) 78
