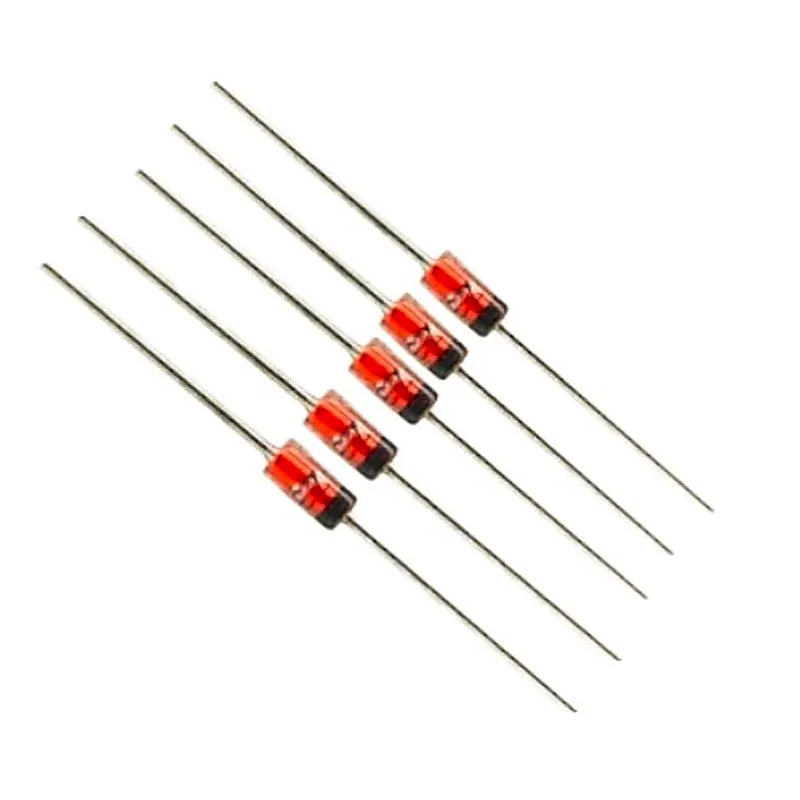

6.2V 1/2W Zener Diode - 5 Pieces Pack

The 6.2V Zener Diode is a complete series of 1/2 Watt Zener diode with limits and excellent operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. All this in an axial-lead hermetically sealed glass package that offers protection in all common environmental conditions. Features:- • Zener Voltage - 6.2V • ESD Rating of Class 3 (>16 {V) per Human Body Model • DO-35 Package • Double Slug Type Construction • Metallurgical Bonded Construction • Oxide Passivated Die Mechanical Characteristics:- • CASE: Double slug type, hermetically sealed glass • FINISH: All external surfaces are corrosion resistant and leads are readily solder-able • MAXIMUM LEAD TEMPERATURE FOR SOLDERING • PURPOSES: 230'C, 1/1 6" from the case for 10 seconds • POLARITY: Cathode indicated by polarity band • MOUNTING POSITION: Any Specification:- Symbol Parameter Value Units PD Power Dissipation 1/2 W TJ Operating Temperature Range -65 to 200 °C TSTG Storage Temperature Range -65 to 200 °C
