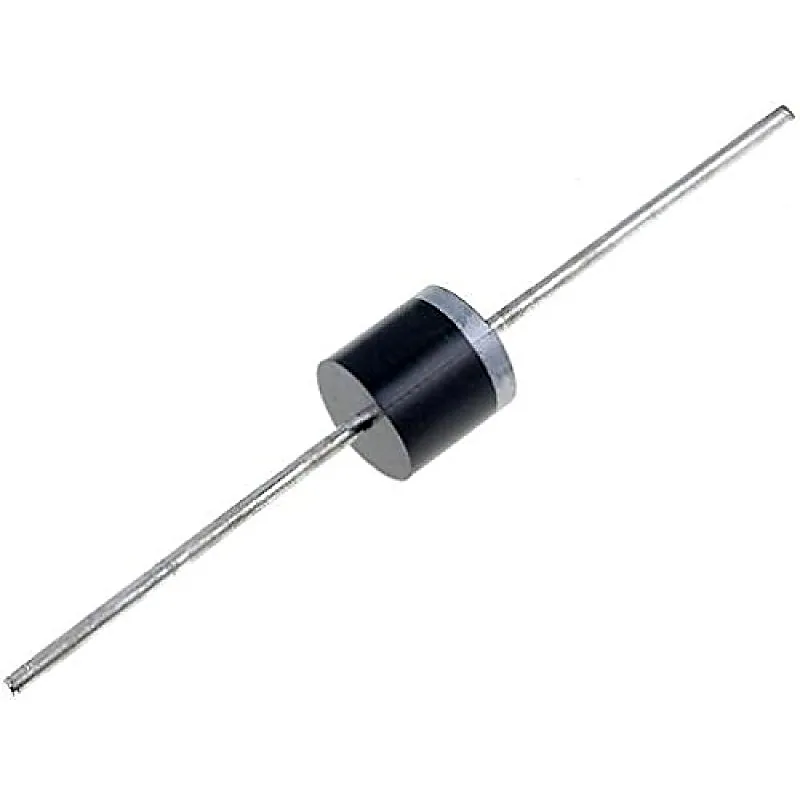

6A4 6A 400V Silicon Rectifier Diode
6A4 6A 400V Silicon Rectifier Diode
Features of 6A4 Rectifier Diode:- High Surge Current Capability Low Leakage and Forward Voltage Drop Lead Free Finish, RoHS Compliant Maximum Recurrent Peak Reverse Voltage VRRM 400V Maximum RMS Voltage VRMS 280V Maximum DC Blocking Voltage VDC 400V Operating and Storage Temperature Range Tj, TSTG -
+ 18% GST (added at checkout)
In stock — 3732 units ready
- High Surge Current Capability
- Low Leakage and Forward Voltage Drop
- Lead Free Finish, RoHS Compliant
- Maximum Recurrent Peak Reverse Voltage VRRM 400V
- Maximum RMS Voltage VRMS 280V
- Maximum DC Blocking Voltage VDC 400V
- Operating and Storage Temperature Range Tj, TSTG -65 to +175 °C
- Case: R-6
- Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0• Moisture Sensitivity: Level 1 per J-STD-020C
- Terminals: Finish Tin. Axial Leads, Solderable per MILSTD-202, Method 208
- Polarity: Color Band Indicates Cathode
- Approximate Weight: 2.1 grams
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Features of 6A4 Rectifier Diode:- High Surge Current Capability Low Leakage and Forward Voltage Drop Lead Free Finish, RoHS Compliant Maximum Recurrent Peak Reverse Voltage VRRM 400V Maximum RMS Voltage VRMS 280V Maximum DC Blocking Voltage VDC 400V Operating and Storage Temperature Range Tj, TSTG -65 to +175 °C Mechanical Features of 6A4 Rectifier Diode:- Case: R-6 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0• Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Finish Tin. Axial Leads, Solderable per MILSTD-202, Method 208 Polarity: Color Band Indicates Cathode Approximate Weight: 2.1 grams
