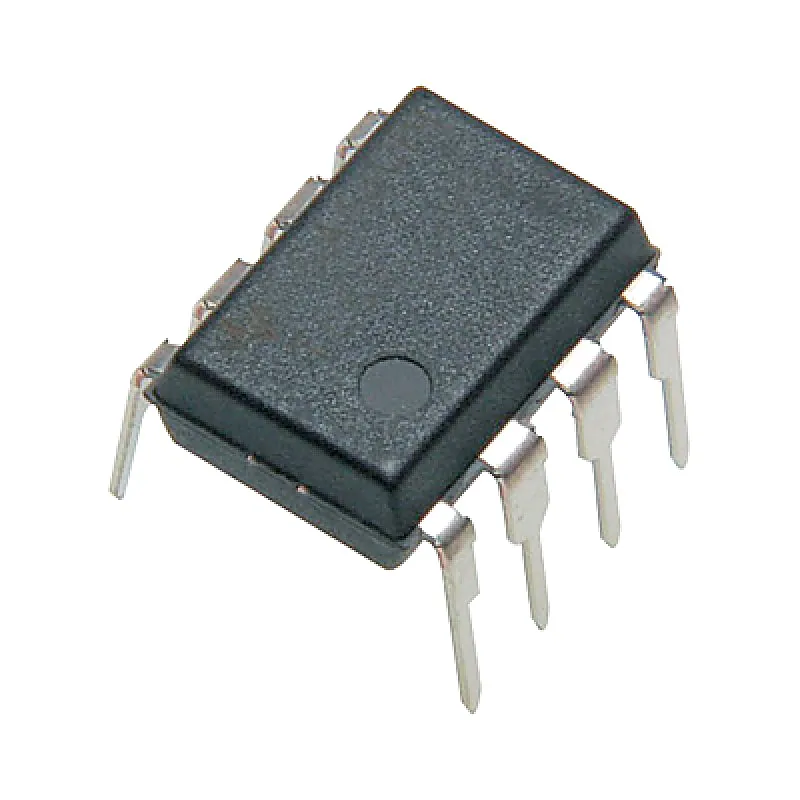

6N135 - High Speed Optocoupler
6N135 - High Speed Optocoupler
The 6N135 is an optocoupler with a GaAIAs infrared emitting diode, optically coupled with an integrated photo detector which consists of a photo diode and a high-speed transistor in a DIP8 plastic package. Signals can be transmitted between two electrically separated circuits up to frequencies of 2
+ 18% GST (added at checkout)
In stock — 646 units ready
- Isolation test voltages: 5300 VRMS
- TTL compatible
- High bit rates: 1 Mbit/s
- High common-mode interference immunity
- Bandwidth 2 MHz
- Open-collector output
- External base wiring possible
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 6N135 is an optocoupler with a GaAIAs infrared emitting diode, optically coupled with an integrated photo detector which consists of a photo diode and a high-speed transistor in a DIP8 plastic package. Signals can be transmitted between two electrically separated circuits up to frequencies of 2 MHz. The potential difference between the circuits to be coupled should not exceed the maximum permissible reference voltages. Features of 6N135 Optocoupler:- Isolation test voltages: 5300 VRMS TTL compatible High bit rates: 1 Mbit/s High common-mode interference immunity Bandwidth 2 MHz Open-collector output External base wiring possible
