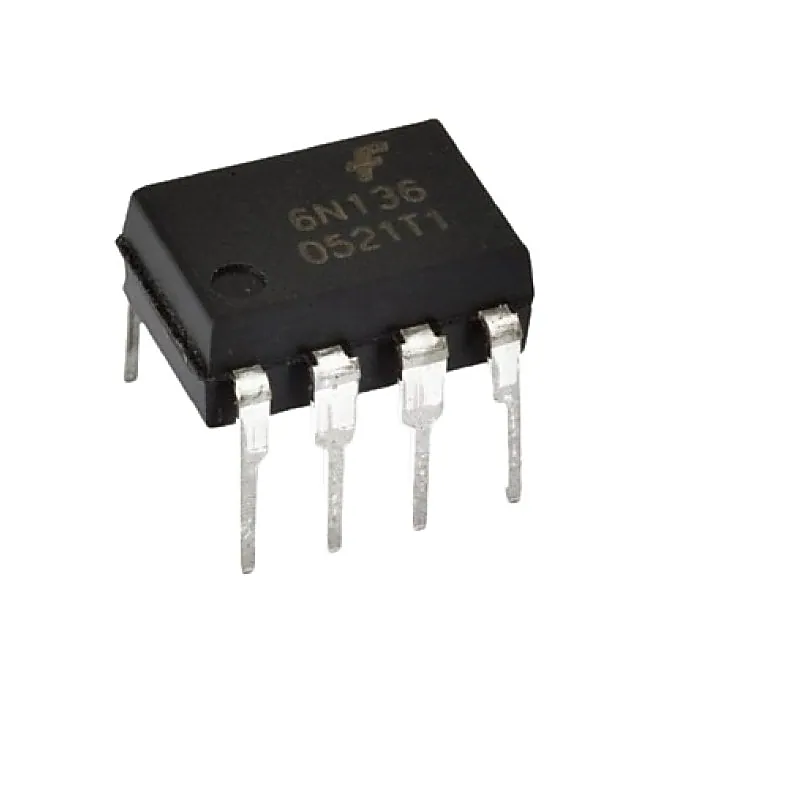

6N136 - High Speed Optocoupler

The 6N136 is an optocoupler with a GaAIAs infrared emitting diode, optically coupled with an integrated photo detector which consists of a photo diode and a high-speed transistor in a DIP8 plastic package. Signals can be transmitted between two electrically separated circuits up to frequencies of 2 MHz. The potential difference between the circuits to be coupled should not exceed the maximum permissible reference voltages. Features of 6N136 Optocoupler:- Isolation test voltages: 5300 VRMS TTL compatible High bit rates: 1 Mbit/s High common-mode interference immunity Bandwidth 2 MHz Open-collector output External base wiring possible Reverse voltage (VR) 5V Forward current (IF) 25mA Storage temperature range (Tstg) -55 to +150°C Ambient temperature range (Tamb) -55 to +100°C Soldering temperature max. ≤ 10 s, dip soldering ≥ 0.5 mm from case bottom (Tsld) 260°C Maximum output current 16mA Base current (IB) 5mA
