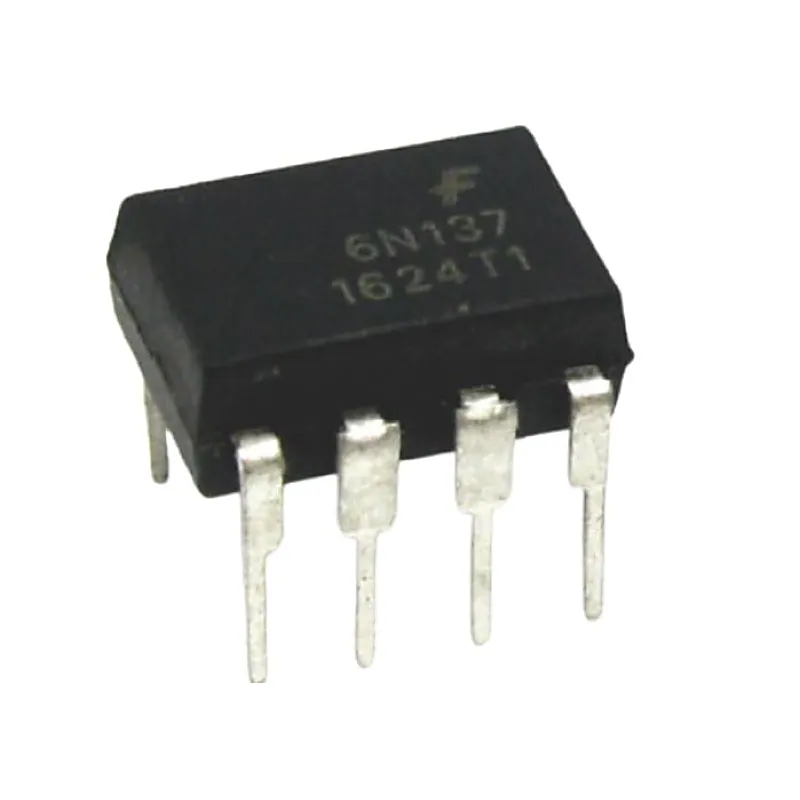

6N137 - High Speed Optocoupler

The 6N137 is single channel 10 MBd opto-couplers utilizing a high efficient input LED coupled with an integrated optical photodiode IC detector. The detector has an open drain NMOS-transistor output, providing less leakage compared to an open collector Schottky clamped transistor output. For the single channel type, an enable function on pin 7 allows the detector to be strobed. The use of a 0.1 μF bypass capacitor connected between pin 5 and 8 is recommended. Features of 6N137 High Speed Opto-coupler:- Choice of CMR performance of 15 kV/μs, 5 kV/μs, and 1000 V/μs High speed: 10 MBd typical +5 V CMOS compatibility Pure tin leads Guaranteed AC and DC performance over temperature: -40 °C to +100 °C temperature range Meets IEC 60068-2-42 (SO2) and IEC 60068-2-43 (H2S) requirements Low input current capability of 5 mA Applications of 6N137 High Speed Optocoupler:- Microprocessor system interface PLC, ATE input/output isolation Computer peripheral interface Digital fieldbus isolation: CC-link, DeviceNet, profibus, SDS High speed A/D and D/A conversion AC plasma display panel level shifting Multiplexed data transmission Digital control power supply Ground loop elimination, noise isolation
