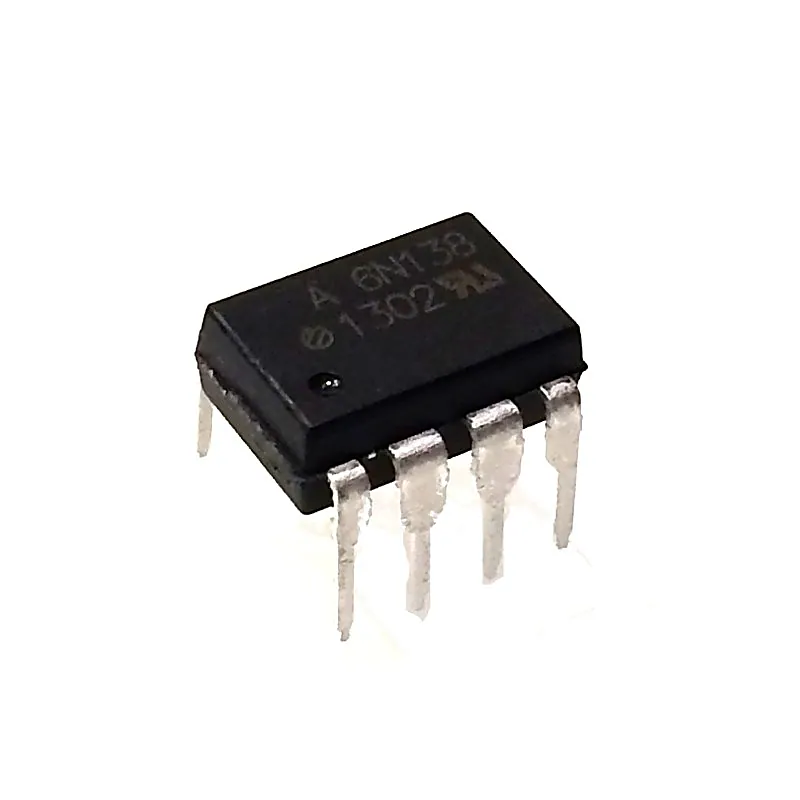

6N138 - High Speed Optocoupler
6N138 - High Speed Optocoupler
The 6N138 consists of a GaAℓAs infrared emitting diode coupled with a split-Darlington output configuration. A high speed GaAℓAs Ired manufactured with an unique LPE junction, has the virtue of fast rise and fall time at low drive current. The 6N138 is ideal for TTL applications since the 300 % mini
+ 18% GST (added at checkout)
In stock — 602 units ready
- High current transfer ratio, 300 %
- Low input current, 0.5 mA
- High output current, 60 mA
- Isolation test voltage, 5300 VRMS
- TTL compatible output, VOL = 0.1 V
- High common mode rejection, 500 V/μs
- Adjustable bandwidth-access to base
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 6N138 consists of a GaAℓAs infrared emitting diode coupled with a split-Darlington output configuration. A high speed GaAℓAs Ired manufactured with an unique LPE junction, has the virtue of fast rise and fall time at low drive current. The 6N138 is ideal for TTL applications since the 300 % minimum current transfer ratio with an LED current of 1.6 mA enables operation with one unit load-in and one unit load-out with a 2.2 kΩ pull-up resistor Features of 6N138 Optocoupler:- High current transfer ratio, 300 % Low input current, 0.5 mA High output current, 60 mA Isolation test voltage, 5300 VRMS TTL compatible output, VOL = 0.1 V High common mode rejection, 500 V/μs Adjustable bandwidth-access to base
