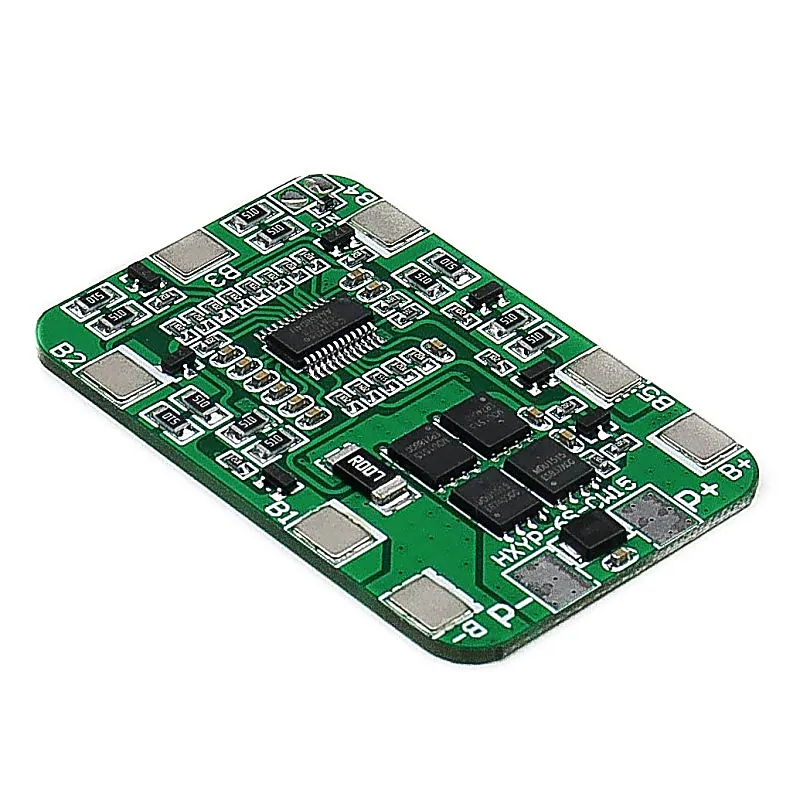

6S 20A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module

6S 20 A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module is a small PCB mount Li-ion Lithium Battery charger protection module. This small battery charger protection module comes with various features like Short circuit protection,Overcharge protection, Over-discharge protection, Overcurrent protection. It is very easy to install and convenient to use in all your DIY portable projects. Features: Battery protection board is mainly for the rechargeable battery (generally refer to as lithium battery) to protect the role of the integrated circuit board. Lithium battery (rechargeable) needs protection, which is determined by its own characteristics. As the material of the lithium battery itself determines that it cannot overcharge, overflowing, short-circuiting, and super high temperature. Charging and discharging of lithium battery will always follow a protective plate with a sampling resistance and a current safety device. Instantaneous discharge current: 25A Charging voltage: 25.5V Charging current: 20 A (MAX) Overcharge detection voltage: 4.28 0.05V Overcharge protection delay: 0.1S Over discharge detection voltage: 2.55 0.08V Overcharge release voltage: 4.08 0.05V Over discharge detection delay: 0.1S The over discharge release voltage: 2.9 0.1V Overcurrent detection voltage: 150mV Overcurrent detection delay: 9MS The Overcurrent protection current: 30 3A Overcurrent protection release condition: Disconnect the load Short circuit detection delay: 250uS Short circuit protection Release condition: disconnect negative open Main circuit conduction resistance: 20m Working current: 30uA Sleep current (battery over discharge) 10uA Temperature range: -30 / + 80°C Connections : MB: The Common connection point between the batteries. B+: Battery V+ Positive B-: Battery V- Negative P+: Charging V+ P-: Charging V- Package Includes: 1 x 6S 20 A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module Specifications: Input Voltage (V) 25.5 26 V Operating Temperature (°C) -30 to 80 Weight (gm) 8 Over-Current Protection (A) Yes Under-Voltage Protection (V) Yes Internal Resistance(Ω) <20m Maximum Operating Current (A) 15 Dimensions (mm) 50 x 32 x 4
