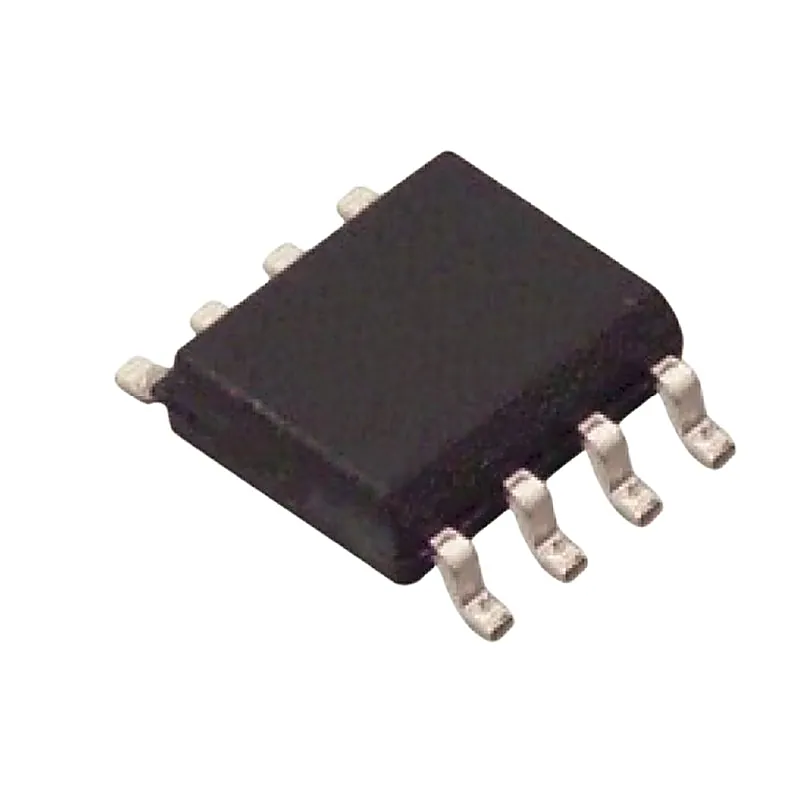

741 IC - (SMD Package) - General Purpose Op-Amp IC

The UA741 is a high performance monolithic operational amplifier constructed on a single silicon chip. It is intended for a wide range of analog applications. The high gain and wide range of operating voltages provide superior performances in integrator, summing amplifiers and general feedback applications. The internal compensation network (6 dB/octave) ensures stability in closed loop circuits. Features:- • Large input voltage range • No latch-up • High gain • Short-circuit protection • No frequency compensation required Applications:- • Summing amplifiers • Voltage followers • Integrator • Active filters • Function generators Specification:- Symbol Parameter Value Unit VCC Supply Voltage ±22 V VIDR Differential Input Voltage ±30 VICR Input Voltage ±15 Tstg Storage Temperature Range −65 to +150 Output short-circuit duration Infinite Rthja Thermal resistance junction to ambient °C/W SO8 125 Rthjc Thermal resistance junction to case SO8 40 Related Document:- UA741 SMD Data Sheet
