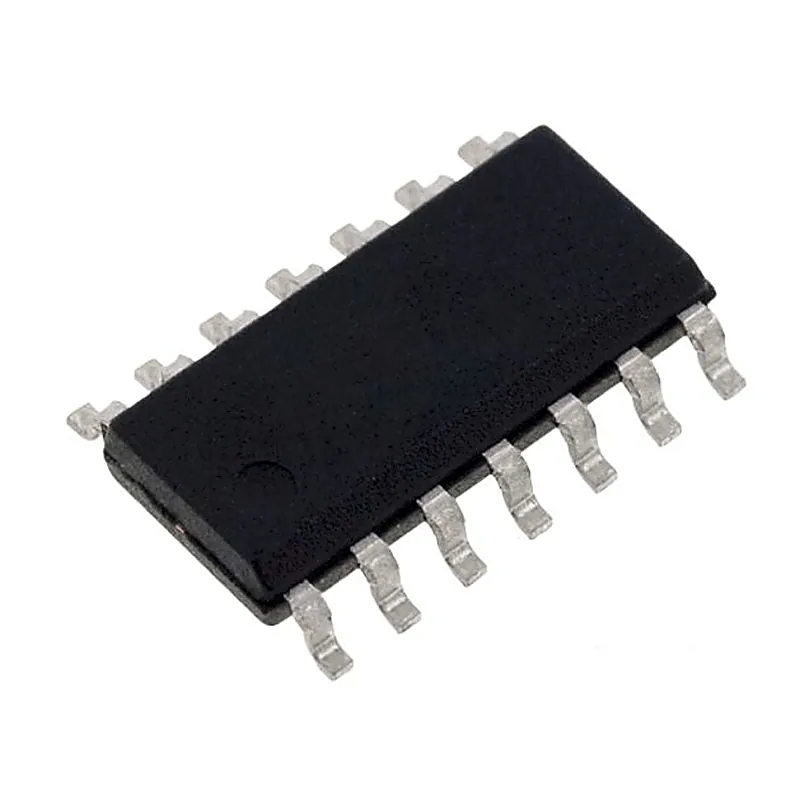

7414 IC - Hex Schmitt Trigger IC - SMD Package
7414 IC - Hex Schmitt Trigger IC - SMD Package
The 7414 Hex Schmitt-Trigger Inverters circuit in 7414 functions as an inverter. However, they have different input threshold levels for positive-going (VT+) and negative-going (VT– ) signals. These circuits are temperature compensated and can be triggered from the slowest of input ramps and still g
+ 18% GST (added at checkout)
In stock — 7748 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 7414 Hex Schmitt-Trigger Inverters circuit in 7414 functions as an inverter. However, they have different input threshold levels for positive-going (VT+) and negative-going (VT– ) signals. These circuits are temperature compensated and can be triggered from the slowest of input ramps and still give clean, jitter-free output signals. Features:- • Operation From Very Slow Edges • Improved Line-Receiving Characteristics • High Noise Immunity Applications:- • HVAC Gateways • Residential Ductless Air Conditioning Outdoor Units • Robotic Controls • Industrial Stepper Motors • Power Meter and Power Analyzers • Digital Input Modules for Factory Automation Specification:- Symbol Parameter Value Units VCC Supply Voltage 7 V Input voltage 5.5 V TJ Junction temperature 150 °C TSTG Storage temperature -65 to 150 °C Related Document:- 7414 IC Data Sheet
