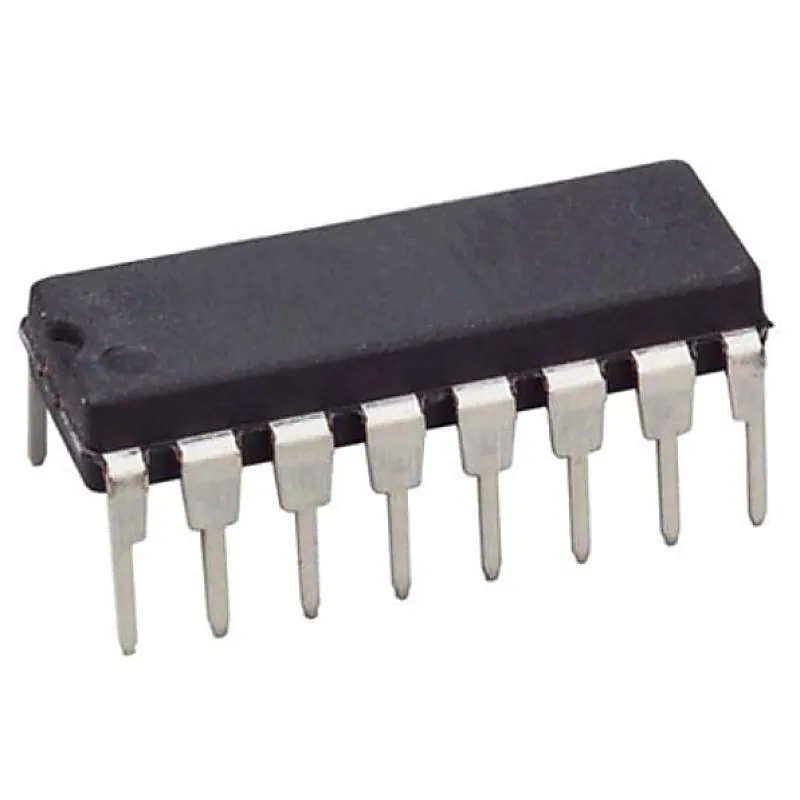

74F182 Carry Lookahead Generator IC (74182) DIP-16 Package
74F182 Carry Lookahead Generator IC (74182) DIP-16 Package
The 74F182 is a high-speed carry lookahead generator. It is generally used with the 74F181 or 74F381 4-bit arithmetic logic units to provide high-speed lookahead over word lengths of more than four bits Features :- Provides lookahead carries across a group of four ALUs Multi-level lookahead high-spe
+ 18% GST (added at checkout)
In stock — 2702 units ready
- Provides lookahead carries across a group of four ALUs
- Multi-level lookahead high-speed arithmetic operation over long word lengths
- Supply voltage : +4.5V - +5.5V
- High–level input voltage : 2.0V
- Low–level input voltage : 0.8V
- Input Clamp Diode Voltage : -1.2V
- Input High Current : 5.0μA
- Output Low Voltage : 0.5V
- Input High Current Breakdown Test : 7.0μA
- Output High Leakage Current : 50μA
- Output Leakage Circuit Current : 3.75μA
- Output Short-Circuit Current : −60 −150mA
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 74F182 is a high-speed carry lookahead generator. It is generally used with the 74F181 or 74F381 4-bit arithmetic logic units to provide high-speed lookahead over word lengths of more than four bits Features :- Provides lookahead carries across a group of four ALUs Multi-level lookahead high-speed arithmetic operation over long word lengths Specifications :- Supply voltage : +4.5V - +5.5V High–level input voltage : 2.0V Low–level input voltage : 0.8V Input Clamp Diode Voltage : -1.2V Input High Current : 5.0μA Output Low Voltage : 0.5V Input High Current Breakdown Test : 7.0μA Output High Leakage Current : 50μA Output Leakage Circuit Current : 3.75μA Output Short-Circuit Current : −60 −150mA Package Includes :- 1 X 74F182 Carry Lookahead Generator IC (74182) DIP-16 Package
