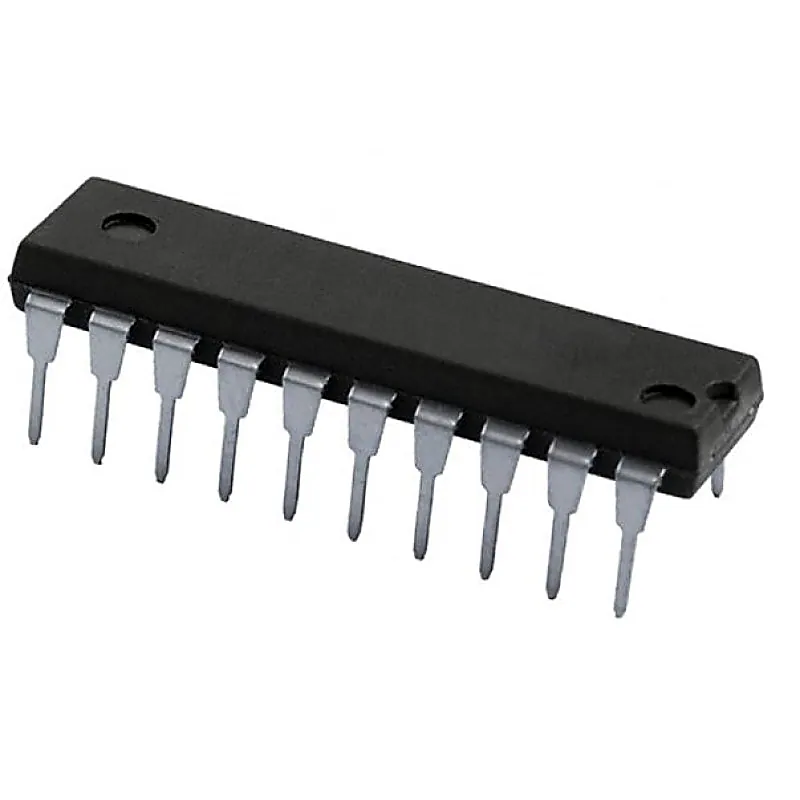

74F240 Octal Buffers/Line Drivers with 3-State Outputs IC (74240) DIP-20 Package
74F240 Octal Buffers/Line Drivers with 3-State Outputs IC (74240) DIP-20 Package
The 74F240 are octal buffers and line drivers designed to be employed as memory and address drivers, clock drivers and bus-oriented transmitters/receivers which provide improved PC and board density. Features :- 3-STATE outputs drive bus lines or buffer memory address registers Outputs sink 64mA (48
+ 18% GST (added at checkout)
In stock — 2149 units ready
- 3-STATE outputs drive bus lines or buffer memory address registers
- Outputs sink 64mA (48mA mil)
- 12mA source current
- Input clamp diodes limit high-speed termination effects
- Supply voltage : +4.5V - +5.5V
- High–level input voltage : 2.0V
- Low–level input voltage : 0.8V
- Input Clamp Diode Voltage : -1.2V
- Input HIGH Current : 5.0µA
- Input HIGH Current Breakdown Test : 7.0µA
- Output HIGH Leakage Current : 50µA
- Output Short-Circuit Current : –100 - –225mA
- Free Air Ambient Temperature : 0°C to +70°C
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 74F240 are octal buffers and line drivers designed to be employed as memory and address drivers, clock drivers and bus-oriented transmitters/receivers which provide improved PC and board density. Features :- 3-STATE outputs drive bus lines or buffer memory address registers Outputs sink 64mA (48mA mil) 12mA source current Input clamp diodes limit high-speed termination effects Specifications :- Supply voltage : +4.5V - +5.5V High–level input voltage : 2.0V Low–level input voltage : 0.8V Input Clamp Diode Voltage : -1.2V Input HIGH Current : 5.0µA Input HIGH Current Breakdown Test : 7.0µA Output HIGH Leakage Current : 50µA Output Short-Circuit Current : –100 - –225mA Free Air Ambient Temperature : 0°C to +70°C Package Includes :- 1 X 74F240 Octal Buffers/Line Drivers with 3-State Outputs IC (74240) DIP-20 Package
