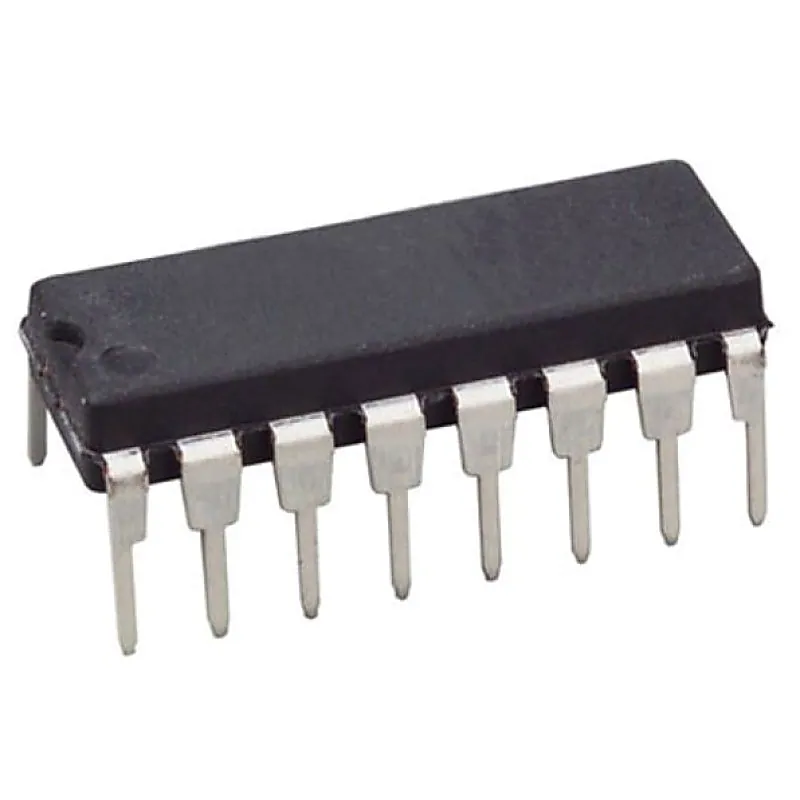

74F251 8-Inputs Multiplexer with 3-State Outputs IC (74251) DIP-16 Package
74F251 8-Inputs Multiplexer with 3-State Outputs IC (74251) DIP-16 Package
The 74F251 is a high-speed 8-input digital multiplexer. It provides, in one package, the ability to select one bit of data from up to eight sources. It can be used as a universal function generator to generate any logic function of four variables. Both assertion and negation outputs are provided Fea
+ 18% GST (added at checkout)
In stock — 1732 units ready
- Multifunctional Capacity
- On-Chip Select Logic Decoding
- Inverting and Noninverting 3-State Outputs
- Supply voltage : 4.5V - 5.5V
- Operating Ambient Temperature Range : 70°C
- Output Current — High : -30mA
- Output Current — Low : 24mA
- Input HIGH Voltage : 2.0V
- Input LOW Voltage : 0.8V
- Input Clamp Diode Voltage : -1.2V
- Output HIGH Voltage : 2.7V
- Output LOW Voltage : 0.5V
- Power Supply Current : 24mA
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 74F251 is a high-speed 8-input digital multiplexer. It provides, in one package, the ability to select one bit of data from up to eight sources. It can be used as a universal function generator to generate any logic function of four variables. Both assertion and negation outputs are provided Features :- Multifunctional Capacity On-Chip Select Logic Decoding Inverting and Noninverting 3-State Outputs Specifications :- Supply voltage : 4.5V - 5.5V Operating Ambient Temperature Range : 70°C Output Current — High : -30mA Output Current — Low : 24mA Input HIGH Voltage : 2.0V Input LOW Voltage : 0.8V Input Clamp Diode Voltage : -1.2V Output HIGH Voltage : 2.7V Output LOW Voltage : 0.5V Power Supply Current : 24mA Package Includes :- 1 X 74F251 8-Inputs Multiplexer with 3-State Outputs IC (74251) DIP-16 Package
