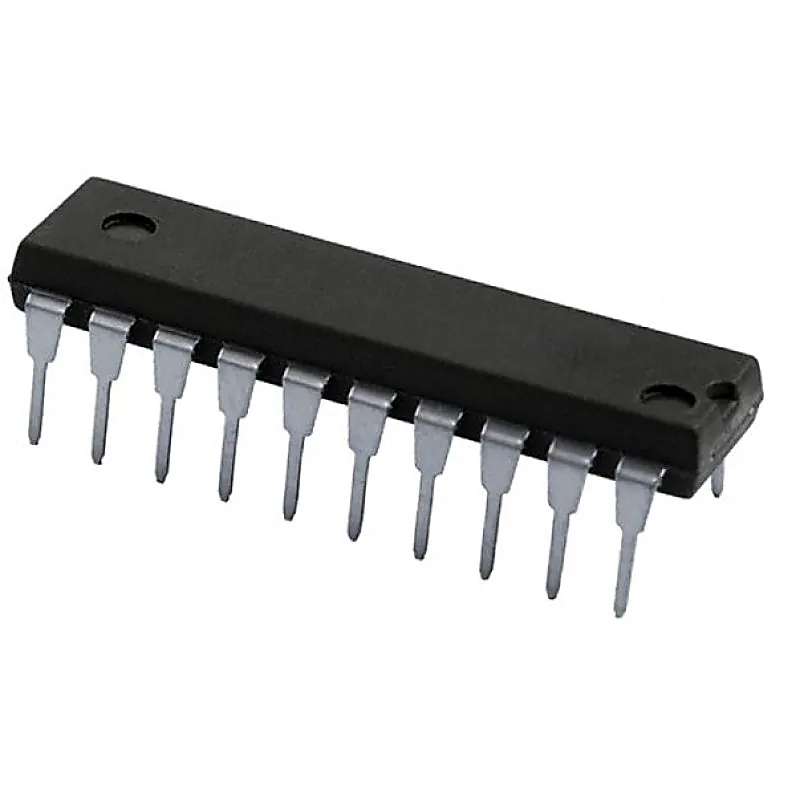

74F521 8-Bit Identity Comparator IC (74521) DIP-20 Package
74F521 8-Bit Identity Comparator IC (74521) DIP-20 Package
The 74F521 is an expandable 8-bit comparator. It compares two words of up to eight bits each and provides a LOW output when the two words match bit for bit. The expansion input IA=B also serves as an active LOW enable input Features :- Compares two 8-bit words in 6.5 ns typ Expandable to any word le
+ 18% GST (added at checkout)
In stock — 1623 units ready
- Compares two 8-bit words in 6.5 ns typ
- Expandable to any word length
- 20-pin package
- Supply voltage : +4.5V - +5.5V
- High-level input voltage : 2.0V
- Low-level input voltage : 0.8V
- Input Clamp Diode Voltage : -1.2V
- Input High Current : 5.0µA
- Input High Current Breakdown Test : 7.0µA
- Output High Leakage Current : 50µA
- Output Short-Circuit Current : -60 -150mA
- Power Supply Current : 32mA
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 74F521 is an expandable 8-bit comparator. It compares two words of up to eight bits each and provides a LOW output when the two words match bit for bit. The expansion input IA=B also serves as an active LOW enable input Features :- Compares two 8-bit words in 6.5 ns typ Expandable to any word length 20-pin package Specifications :- Supply voltage : +4.5V - +5.5V High-level input voltage : 2.0V Low-level input voltage : 0.8V Input Clamp Diode Voltage : -1.2V Input High Current : 5.0µA Input High Current Breakdown Test : 7.0µA Output High Leakage Current : 50µA Output Short-Circuit Current : -60 -150mA Power Supply Current : 32mA Package Includes :- 1 X 74F521 8-Bit Identity Comparator IC (74521) DIP-20 Package
