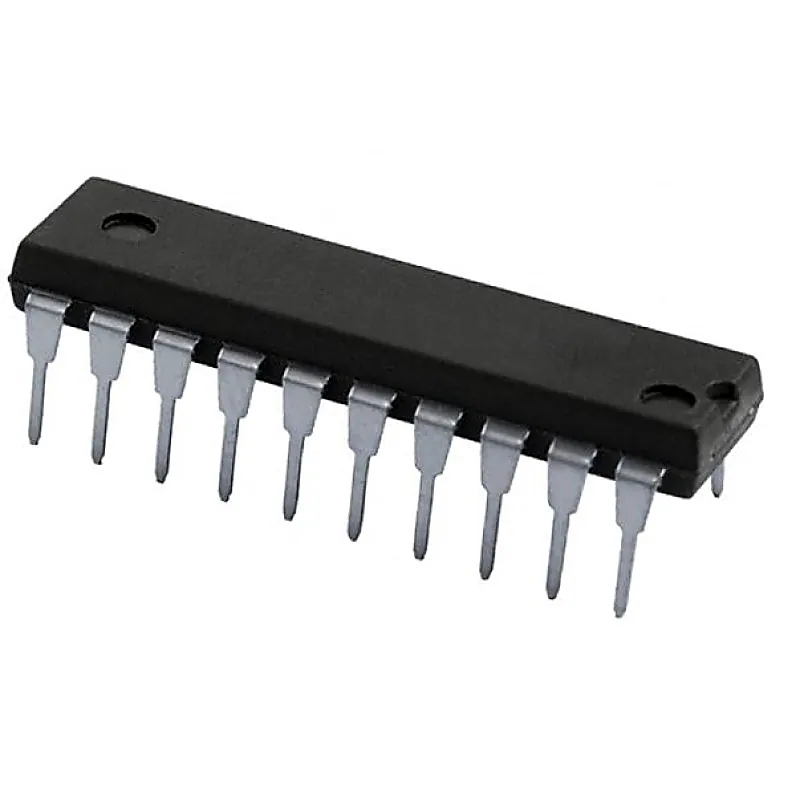

74F533 Octal Transparent Latch with 3-State Outputs IC (74533) DIP-20 Package

The 74F533 consists of eight latches with 3-STATE outputs for bus organized system applications. The flip-flops appear transparent to the data when Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the setup times is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH the bus output is in the high impedance state. Features :- Eight latches in a single package 3-STATE outputs for bus interfacing Specifications :- Supply voltage : +4.5V - +5.5V High-level input voltage : 2.0V Low-level input voltage : 0.8V Input Clamp Diode Voltage : -1.2V Input High Current : 5.0µA Input High Current Breakdown Test : 7.0µA Output High Leakage Current : 50µA Output Short-Circuit Current : -60 -150mA Power Supply Current : 61mA Free Air Ambient Temperature : 0°C to +70°C Package Includes :- 1 X 74F533 Octal Transparent Latch with 3-State Outputs IC (74533) DIP-20 Package
