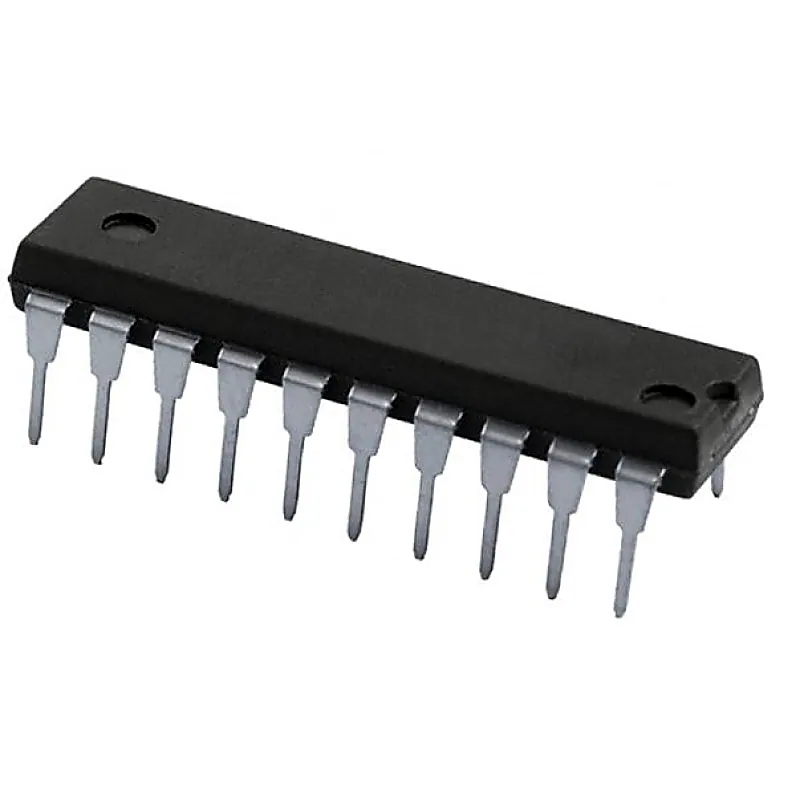

74F541 Octal Buffer/Line Driver with 3-State Outputs IC (74541) DIP-20 Package
74F541 Octal Buffer/Line Driver with 3-State Outputs IC (74541) DIP-20 Package
The 74F541 except that the inputs and outputs are on opposite sides of the package (see Connection Diagrams). This pinout arrangement makes these devices especially useful as output ports for microprocessors, allowing ease of layout and greater PC board density Features :- 3-STATE outputs drive bus
+ 18% GST (added at checkout)
In stock — 2272 units ready
- 3-STATE outputs drive bus lines
- Inputs and outputs opposite side of package, allowing easier interface to microprocessors
- Supply voltage : +4.5V - +5.5V
- High-level input voltage : 2.0V
- Low-level input voltage : 0.8V
- Input Clamp Diode Voltage : -1.2V
- Input High Current : 5.0µA
- Input High Current Breakdown Test : 7.0µA
- Output High Leakage Current : 50µA
- Free Air Ambient Temperature : 0°C to +70°C
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 74F541 except that the inputs and outputs are on opposite sides of the package (see Connection Diagrams). This pinout arrangement makes these devices especially useful as output ports for microprocessors, allowing ease of layout and greater PC board density Features :- 3-STATE outputs drive bus lines Inputs and outputs opposite side of package, allowing easier interface to microprocessors Specifications :- Supply voltage : +4.5V - +5.5V High-level input voltage : 2.0V Low-level input voltage : 0.8V Input Clamp Diode Voltage : -1.2V Input High Current : 5.0µA Input High Current Breakdown Test : 7.0µA Output High Leakage Current : 50µA Free Air Ambient Temperature : 0°C to +70°C Package Includes :- 1 X 74F541 Octal Buffer/Line Driver with 3-State Outputs IC (74541) DIP-20 Package
