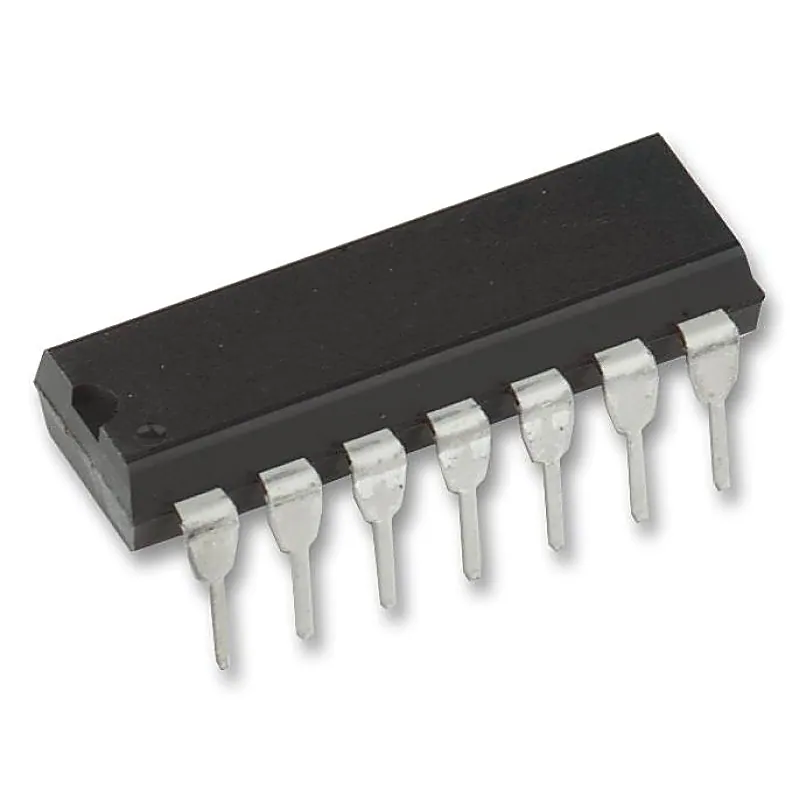

74HC00 Quad 2-Input NAND Gate IC (7400 IC) DIP-14 Package

The 74HC00 is a 14 Pin Quad 2-Input NAND Gate IC. This device contains four independent gates each of which performs the logic NAND function. NAND gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. All gates have buffered outputs. All devices have high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground. Features:- Four Independent NAND Gates 14 Pin IC Operating Temperature to 70 C High-Speed Low Power CMOS Type Datasheet:- 74HC00 IC Datasheet
