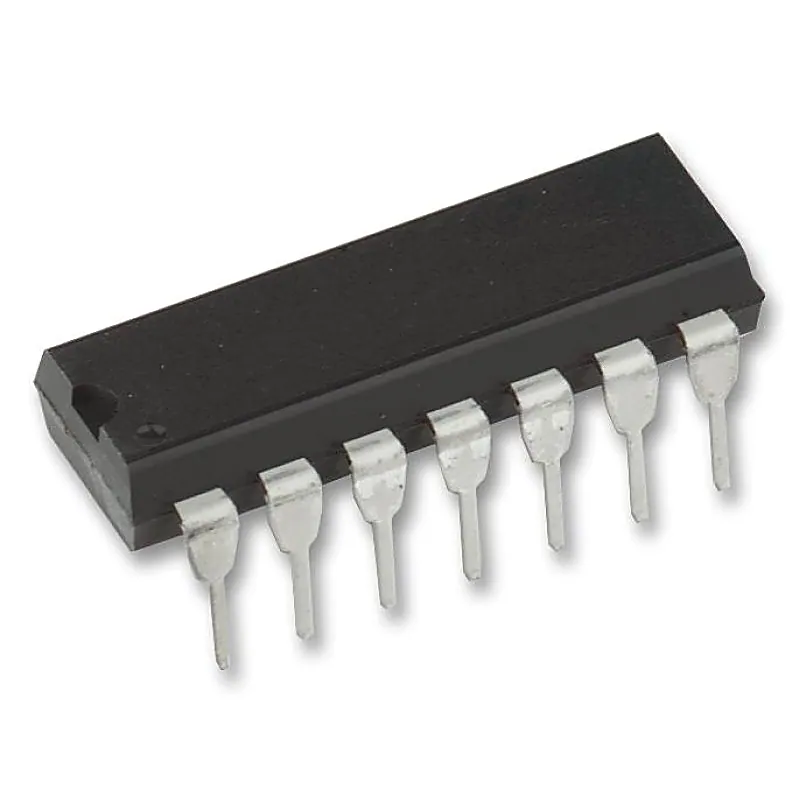

74HC02 Quad 2-Input NOR Gate IC (7402 IC) DIP-14 Package

The 74HC02 is a 14 Pin Quad 2-Input NOR Gate IC. NOR gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. All gates have buffered outputs, providing high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground. Features:- Four Independent NOR Gates 14 Pin IC Also Available in SMD Type Operating Temperature to 70 Deg C High-Speed CMOS Type Datasheet:- 74HC02 IC Datasheet
