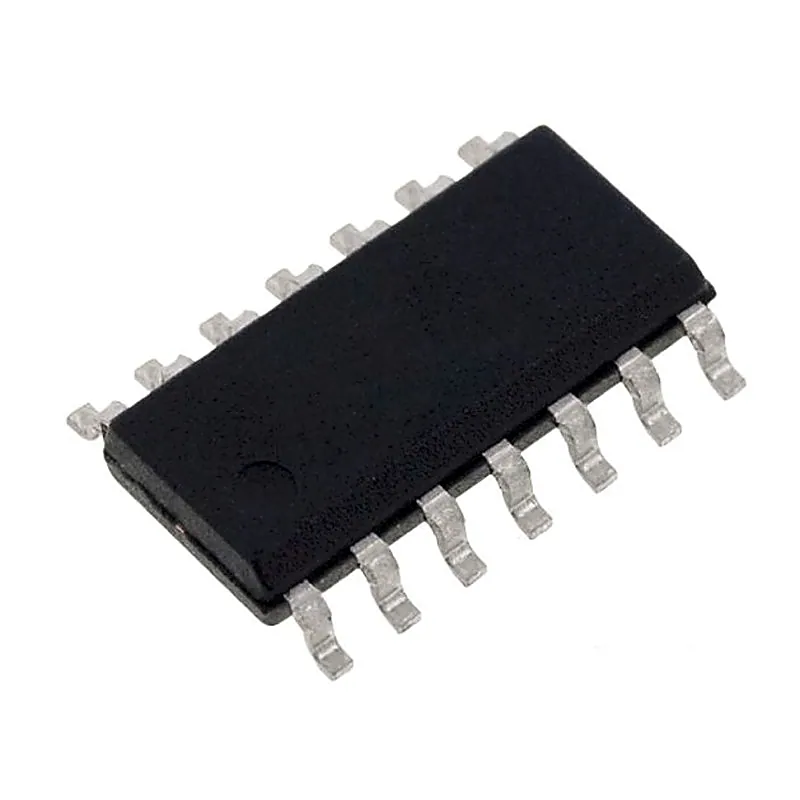

74HC04 IC - (SMD Package) - Hex Inverter IC (7404 IC)
74HC04 IC - (SMD Package) - Hex Inverter IC (7404 IC)
74HC04 is Hex Inverter NOT gate SMD IC. It consists of six inverters which perform logical invert action. output of an inverter is complement of its input logic state i.e. when input is high its output is low and vice versa. device contains six independent gates each of which performs logic INVERT f
+ 18% GST (added at checkout)
In stock — 45 units ready
- 6 Hex Inverters in a 14-Pin SMD Package
- Outputs Directly Interface to CMOS, NMOS and TTL
- Large Operating Voltage Range
- Wide Operating Conditions
- Type: SMD
- Voltage Rating: 4.75 to 5.25V
- Current Rating: Max. 16mA Output
- Temperature Rating: 0 to 70Deg C
- Number of: 14 Pins
- Mounting: SMD
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
74HC04 is Hex Inverter NOT gate SMD IC. It consists of six inverters which perform logical invert action. output of an inverter is complement of its input logic state i.e. when input is high its output is low and vice versa. device contains six independent gates each of which performs logic INVERT function. Operating voltage is 5V, high-level input voltage is 2V, and low-level input is 0.8V. Contains absolute maximum ratings over operating free-air temperature range, recommended operating conditions, electrical characteristics over recommended operating free-air temperature range. Features:- 6 Hex Inverters in a 14-Pin SMD Package Outputs Directly Interface to CMOS, NMOS and TTL Large Operating Voltage Range Wide Operating Conditions Specifications:- Type: SMD Voltage Rating: 4.75 to 5.25V Current Rating: Max. 16mA Output Temperature Rating: 0 to 70Deg C Number of: 14 Pins Mounting: SMD Package Includes:- 1 x 74HC04 IC - (SMD Package) - Hex Inverter IC (7404 IC)
