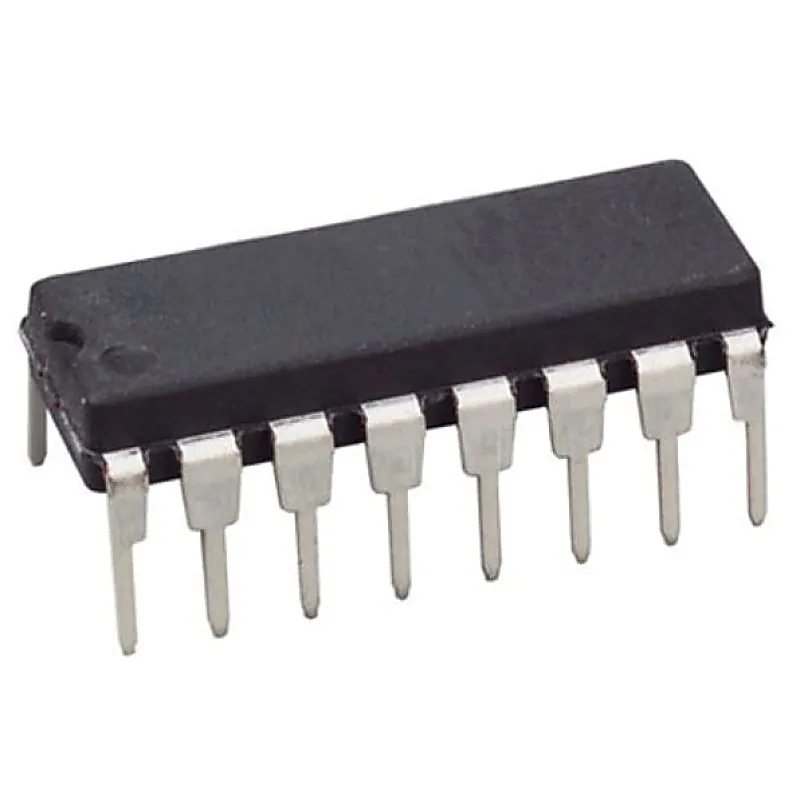

74HC151 8-Input Multiplexer IC (74151 IC) DIP-16 Package

74HC151 is 8 - Input Multiplexer 16 Pin IC. Data Selector/Multiplexer contains full on-chip decoding to select one-of-eight data sources as a result of a unique three binary code at select inputs. Two complementary outputs provide both inverting and non-inverting buffer operation. A Strobe input is provided which, when at high level, disables all data inputs and forces Y output to low state and W output to high state. Select input buffers incorporate internal overlap features to ensure that select input changes do not cause invalid output transients.Used for Boolean Function Generator. Features:- Advanced oxide-isolated, ion-implanted Schottky TTL process Switching performance is guaranteed over full temperature and VCC supply range Pin and functional compatible with LS family counterpart Improved output transient handling capability S pecifications:- Type: CMOS Voltage Rating: 5VDC Temperature Rating: -65 to 165 Deg C Mounting: Through Hole Datasheet:- 74HC151 IC Datasheet
