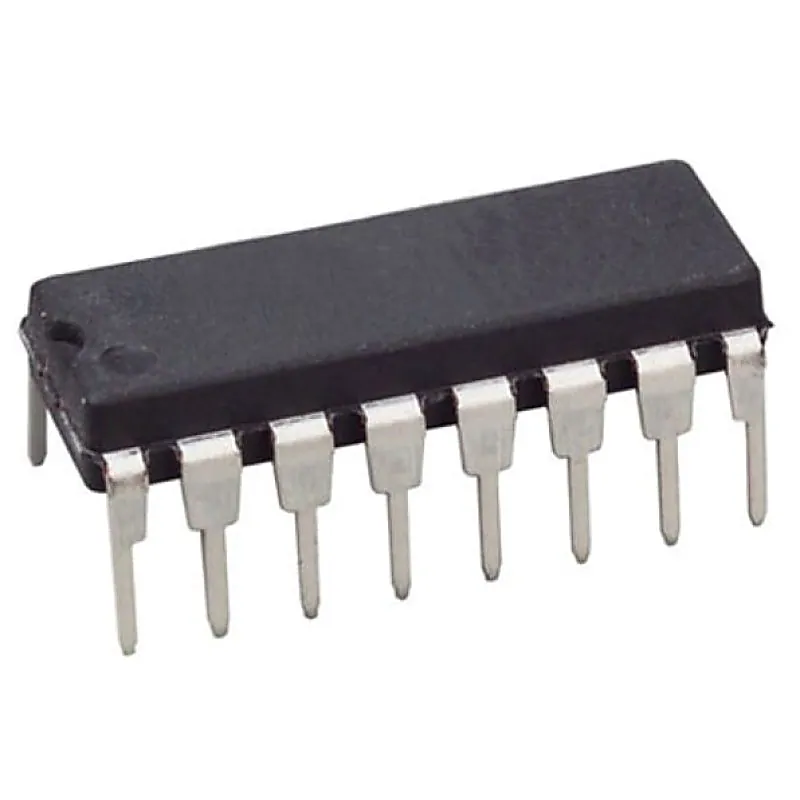

74HC157 Quad 2-Input Multiplexer IC (74157 IC) DIP-16 Package

74HC157 is a 16 Pin Quad 2-Input Multiplexer IC having 2V to 6V Operating Voltage range with 1uA Low Input current and high noise immunity. It select 4 bits of data from two sources under the control of a common data select input (S). The enable input (E) is active LOW. When E is HIGH, all of the outputs (1Y to 4Y) are forced LOW regardless ofall other input conditions. Specifications:- Package Type: DIP Voltage Rating: 2 to 6V Current Rating: 1µA low input current Temperature Rating: -55 to 125 Deg C Number of Pins: 16 Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V Datasheet:- 74HC157 IC Datasheet
