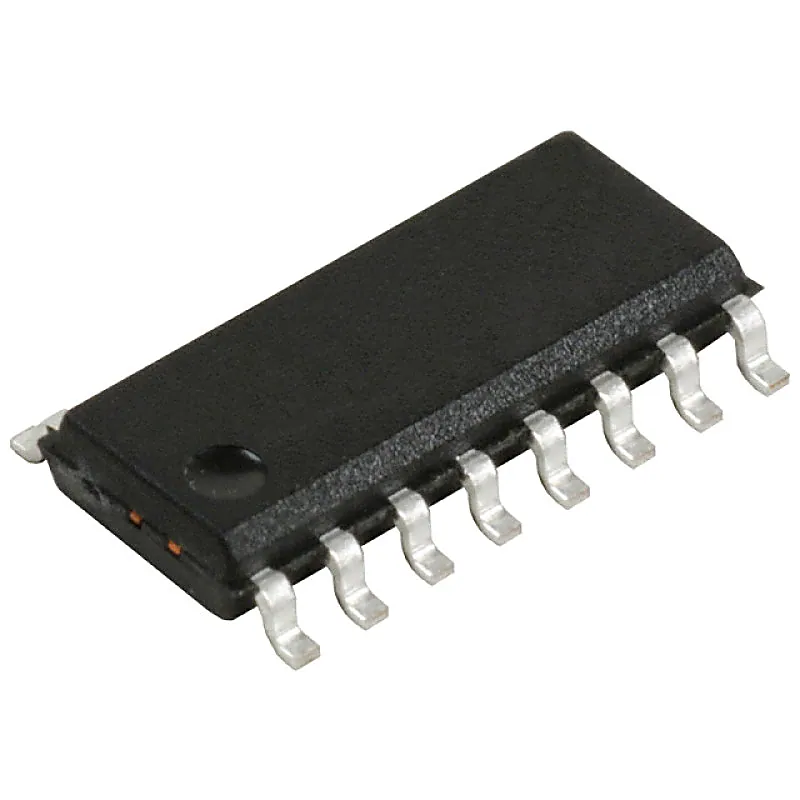

74HC158 IC - (SMD Package) - Quad 2-Input Multiplexer IC (74158 IC)

These data selectors/multiplexers contain inverters and drivers that supply full data selection to the four output gates. A separate strobe (G) input is provided. A 4-bit word is selected from one of two sources and is routed to the four outputs. The ’HC158 devices’ outputs provide inverted data Features :- Wide Operating Voltage Range of 2 V to 6 V Outputs Can Drive Up To 15 LSTTL Loads Low Power Consumption, 80-µA Max ICC Typical tpd = 11 ns ±6-mA Output Drive at 5 V Low Input Current of 1 µA Max Specifications :- Parameter Value Unit Supply voltage range −0.5 V to 7 V Input clamp current +20 mA Output clamp current +20 mA Continuous output current +35 mA Continuous current through +70 mA Package Includes :- 1 X 74HC158 Quadruple 2-Line TO 1-Line Data Selectors/Multiplexers IC (74158 IC) DIP-16 Package
