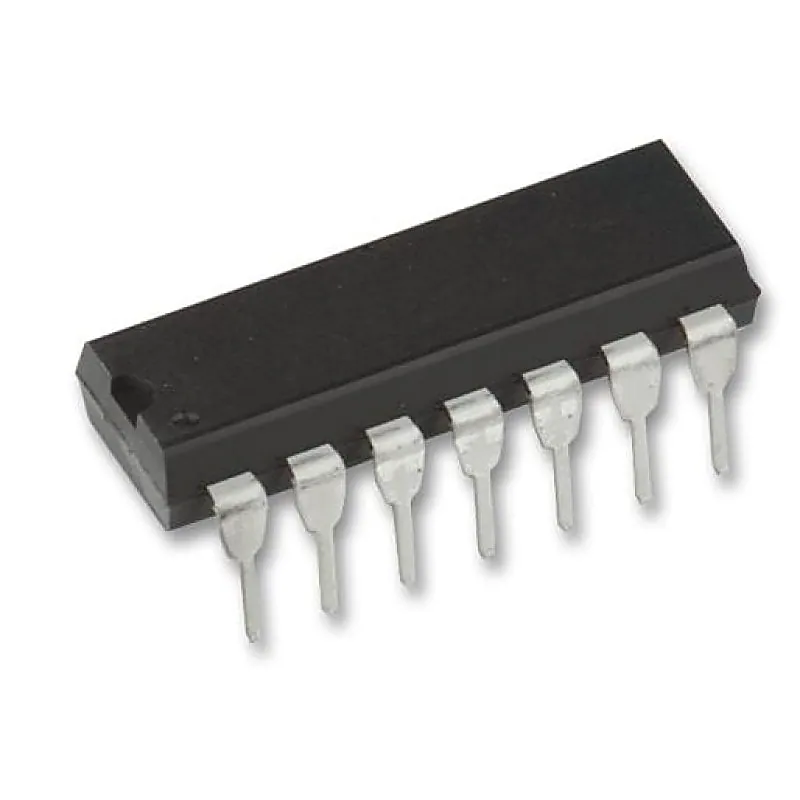

74HC20 Dual 4-input NAND Gate IC (7420 IC) DIP-14 Package

The 74HC20 is a 14 Pin Quad 4-Input NAND Gate IC. This device contains four independent gates each of which performs the logic NAND function. NAND gates utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. All gates have buffered outputs. All devices have high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground. Features :- Complies with JEDEC standard JESD7A Low-power dissipation Input Levels : For 74HC20: CMOS level / For 74HCT20: TTL level ESD protection: HBM JESD22-A114F exceeds 2000 V / MM JESD22-A115-A exceeds 200 V Multiple package options Specified from 40 C to +80 C and from 40 C to +125 C. Specifications :- Parameter Specification Supply Voltage (VCC − 0.5 to + 7.0V DC Input Voltage (VIN) −0.5V to VDD + 0.5V Output Voltage (VOUT) − 0.5 to VCC + 0.5V Clamp Diode Current (IIK, IOK) ± 20 mA DC Output Current, per pin (IOUT) ± 25 mA DC VCC or GND Current, per pin (ICC) ± 50 mA Storage Temperature Range (TSTG) − 65°C to + 150°C Power Dissipation (PD) (Note 4) 500 mW S.O. Package only 500 mW Package Includes :- 1 X 74HC20 Dual 4-input NAND Gate IC (7420 IC) DIP-14 Package
