74HC20 IC - (SMD Package) - Dual 4-input NAND Gate IC (7420 IC)
74HC20 IC - (SMD Package) - Dual 4-input NAND Gate IC (7420 IC)

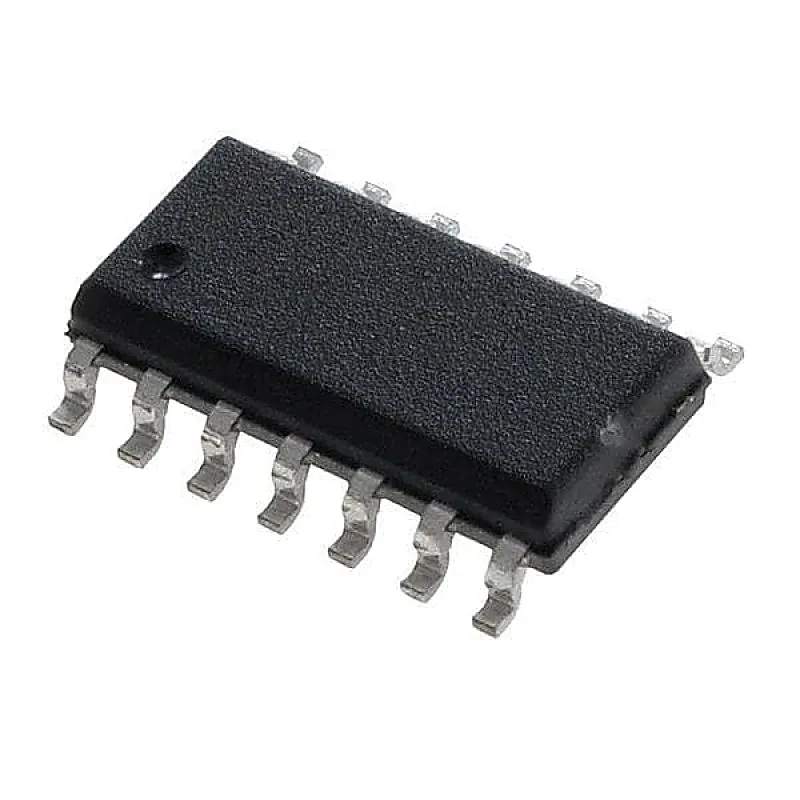

The 74HC20; 74HCT20 is a dual 4-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Features :- Complies with JEDEC standard JESD7A Low-power dissipation Input levels: For 74HC20: CMOS level For 74HCT20: T
+ 18% GST (added at checkout)
In stock — 2440 units ready
- Complies with JEDEC standard JESD7A
- Low-power dissipation
- Input levels:
- ESD protection:
- Multiple package options
- Supply voltage min : -0.5V
- Supply voltage max : +7V
- Input clamping current max : +20mA
- Output clamping current max : +20mA
- Output current max : +25mA
- Supply current max : 50mA
- Ground current min : -50mA
- Storage temperature min : -65 °C
- Storage temperature max : +150°C
- Total power dissipation max : mW
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 74HC20; 74HCT20 is a dual 4-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Features :- Complies with JEDEC standard JESD7A Low-power dissipation Input levels: For 74HC20: CMOS level For 74HCT20: TTL level ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V Multiple package options Specified from °C40 °C to +80 °C and from °C40 °C to +125 °C. Specifications :- Supply voltage min : -0.5V Supply voltage max : +7V Input clamping current max : +20mA Output clamping current max : +20mA Output current max : +25mA Supply current max : 50mA Ground current min : -50mA Storage temperature min : -65 °C Storage temperature max : +150°C Total power dissipation max : mW Package Includes :- 1 X 74HC20 Dual 4-input NAND Gate IC (7420 IC) DIP-14 Package
