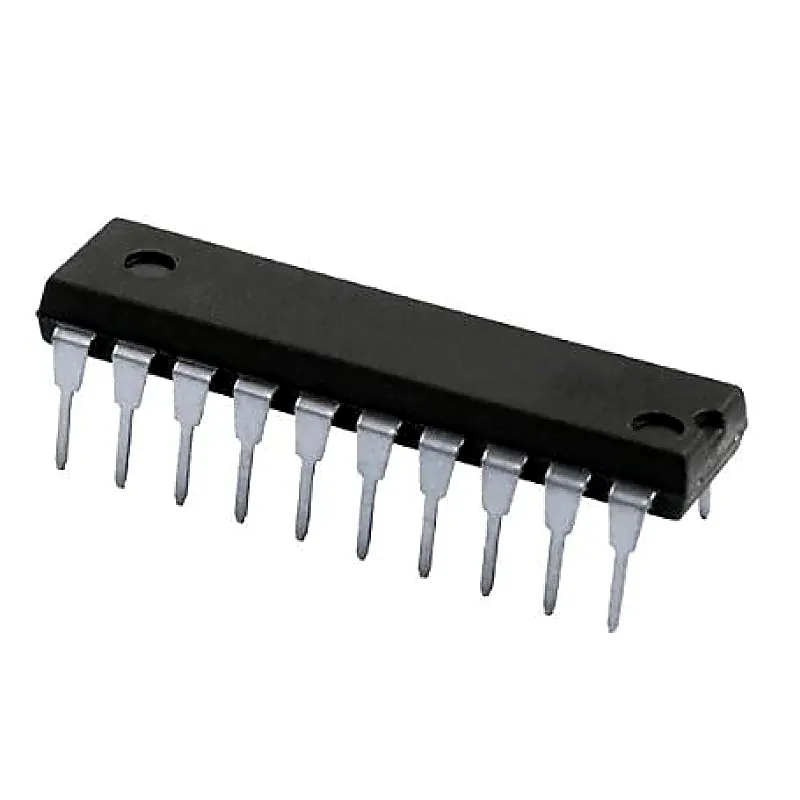

74HC241 8-Bit Buffer Line Driver IC (74241 IC) DIP-20 Package

The 74HC241; 74HCT241 is an 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. The device features two output enables (1OE and 2OE), each controlling four of the 3-state outputs. A HIGH on 1OE or LOW on 2OE causes the associated outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. The 74HCT241 device features reduced input threshold levels to allow interfacing to TTL logic levels. Features :- Input levels: – For 74HC241: CMOS level – For 74HCT241: TTL level Octal bus interface Non-inverting 3-state outputs Complies with JEDEC standard no. 7 A ESD protection: – HBM JESD22-A114F exceeds 2000 V – MM JESD22-A115-A exceeds 200 V Multiple package options Specified from −40 °C to +85 °C and −40 °C to +125 °C Specifications :- Parameter Min Max Unit Supply Voltage (VCC) 2 6 V DC Input or Output Voltage (VIN, VOUT) 0 Vcc V ambient temperature -40 +125 °C Input Rise or Fall Times VCC = 2.0V 625 ns VCC = 4.5V 139 ns VCC = 6.0V 83 ns Package Includes :- 1 X 74HC241 8-Bit Buffer Line Driver IC (74241 IC) DIP-20 Package
