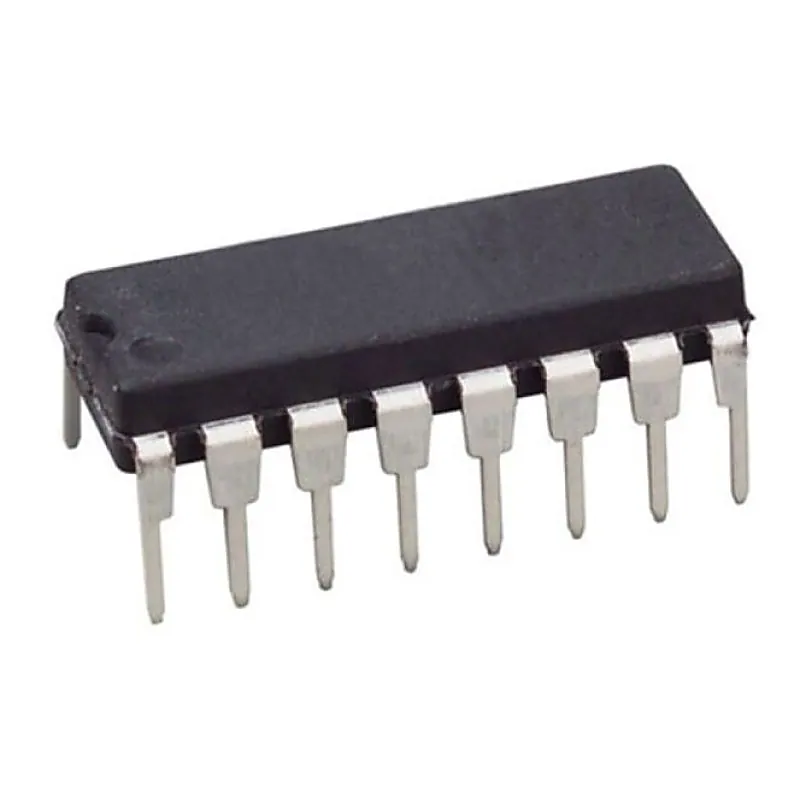

74HC258 Quad 2-input multiplexer IC (74258 IC) DIP-16 Package

The 74HC258 is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). The 74HC258 is specified in compliance with JEDEC standard no. 7A. The 74HC258 has four identical 2-input multiplexers with 3-state outputs, which select 4 bits of data from two sources and is controlled by a common data select input (S). The data inputs from source 0 (1I0 to 4I0) are selected when input S is LOW and the data inputs from source 1 (1I1 to 4I1) are selected when S is HIGH. Data appears at the outputs (1Y to 4Y) in inverted form from the select inputs. The 74HC258 is the logic implementation of a 4-pole, 2-position switch, where the position of the switch is determined by the logic levels applied to S. The outputs are forced to a high-impedance OFF-state when OE is HIGH. Features :- 3-state outputs interface directly with system bus Low-power dissipation Inverting data path Complies with JEDEC standard no. 7A Multiple package options Specified from −40 °C to +85 °C and from −40 °C to +125 °C. Specifications :- Parameter Min Max Unit Supply Voltage (VCC) 2 6 V DC Input or Output Voltage (VIN, VOUT) 0 Vcc V ambient temperature -40 +125 °C Input Rise or Fall Times VCC = 2.0V 625 ns VCC = 4.5V 139 ns VCC = 6.0V 83 ns Package Includes :- 1 X 74HC258 Quad 2-input multiplexer IC (74258 IC) DIP-16 Package
