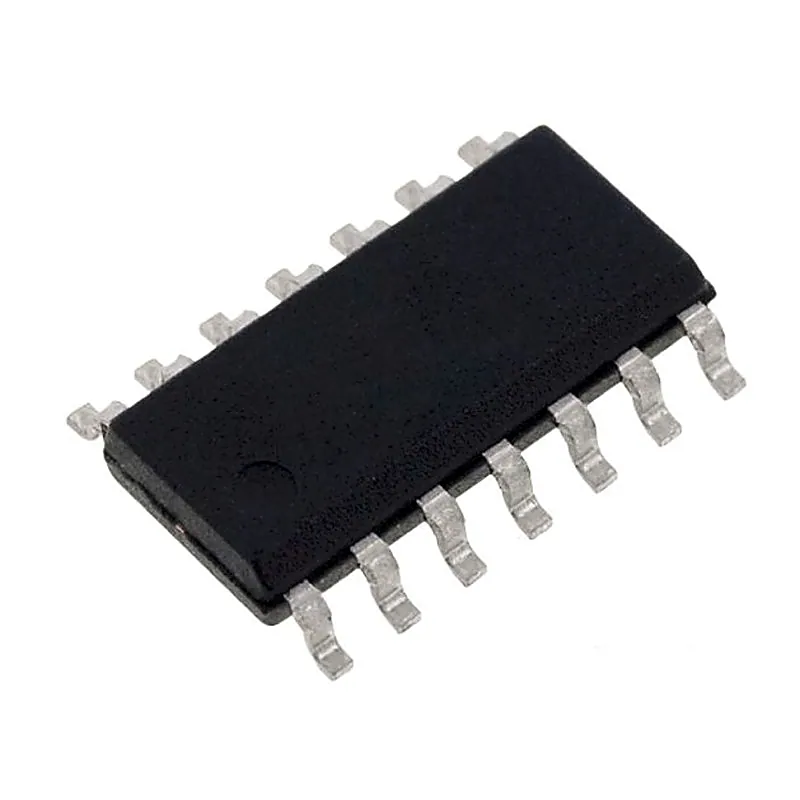

74HC30 IC – (SMD Package) - 8-input NAND Gate IC (7430 IC)
74HC30 IC – (SMD Package) - 8-input NAND Gate IC (7430 IC)
The 74HC30 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC30 provide the 8-input NAND function. Features:- • Output capability: standard • ICC category: SSI Specification:- Symbol Pa
+ 18% GST (added at checkout)
In stock — 460 units ready
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 74HC30 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC30 provide the 8-input NAND function. Features:- • Output capability: standard • ICC category: SSI Specification:- Symbol Parameter Value Unit VCC Supply Voltage − 0.5 to + 7.0V V VIN DC Input Voltage − 1.5 to VCC + 1.5V V VOUT DC Output Voltage − 0.5 to VCC + 0.5V V IIK, IOK Clamp Diode Current ± 20 mA IOUT DC Output Current, per pin ± 25 mA ICC DC VCC or GND Current, per pin ± 50 mA TSTG Storage Temperature Range − 65°C to + 150 °C PD Power Dissipation 500 mW TL Lead Temperature 260 °C Related Document:- 74HC30 SMD Data Sheet
