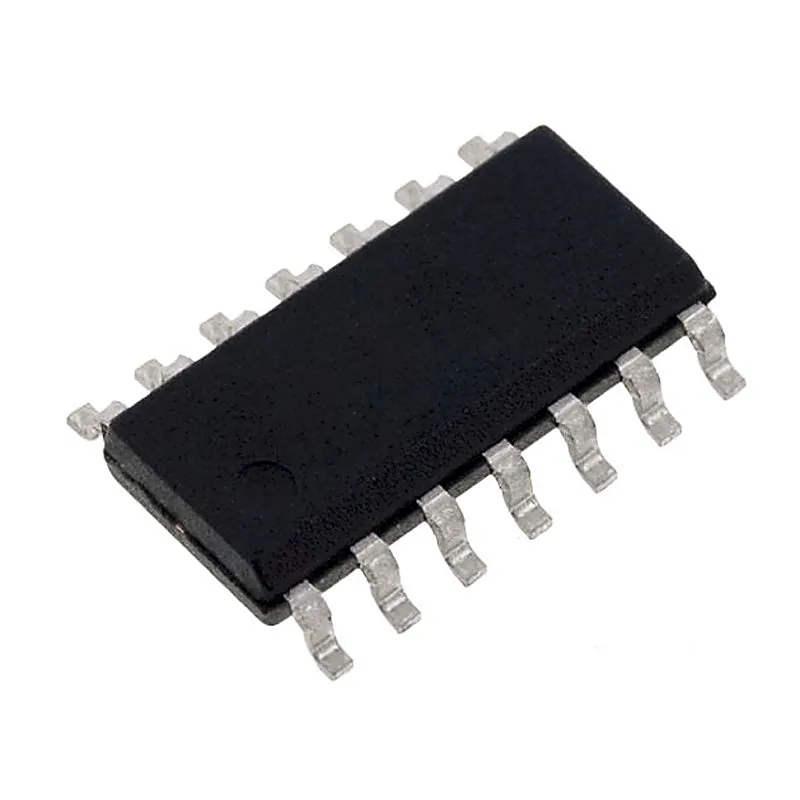

74HC32 IC - (SMD Package) - Quad 2-Input OR Gate IC (7432 IC)
74HC32 IC - (SMD Package) - Quad 2-Input OR Gate IC (7432 IC)
The 74HC32 is a 14 Pin Quad 2-Input OR Gate SMD IC. The 74HC32 provides four independent 2-input OR gates with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 6.0V. Inputs include clamp diodes. This enables the use of current limiting resistors t
+ 18% GST (added at checkout)
In stock — 2581 units ready
- 4 OR gates in a 14-Pin SMD Package
- Outputs Directly Interface to CMOS, NMOS and TTL
- Large Operating Voltage Range
- Wide Operating Conditions
- CMOS low power consumption
- Schmitt Trigger Action at All Inputs
- Type: SMD
- Voltage Rating: 2.0 to 6.0V
- Temperature Rating: 0 to 70Deg C
- Number of: 14 Pins
- Mounting: SMD
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 74HC32 is a 14 Pin Quad 2-Input OR Gate SMD IC. The 74HC32 provides four independent 2-input OR gates with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 6.0V. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Features:- 4 OR gates in a 14-Pin SMD Package Outputs Directly Interface to CMOS, NMOS and TTL Large Operating Voltage Range Wide Operating Conditions CMOS low power consumption Schmitt Trigger Action at All Inputs Specifications:- Type: SMD Voltage Rating: 2.0 to 6.0V Temperature Rating: 0 to 70Deg C Number of: 14 Pins Mounting: SMD
