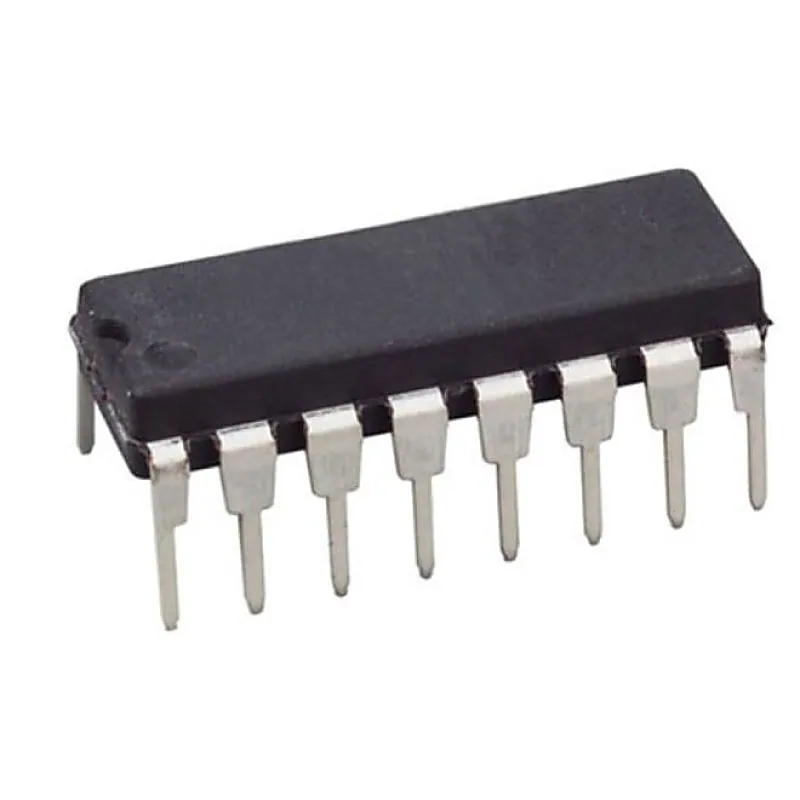

74HC366 Hex Inverting Buffer Line Driver IC (74366 IC) DIP-16 Package

The 74HC366; 74HCT366 is a hex inverting buffer/line driver with 3-state outputs controlled by the output enable inputs (OEn). A HIGH on OEn causes the outputs to assume a high impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC Features : Wide supply voltage range from 2.0 V to 6.0 V CMOS low power dissipation High noise immunity Latch-up performance exceeds 100 mA per JESD 78 Class II Level B Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V) Inverting outputs Input levels: For 74HC366: CMOS level For 74HCT366: TTL level ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V Specified from -40 °C to +85 °C and from -40 °C to +125 °C Specifications :- Symbol Parameter Value Unit VCC Supply Voltage -0.5 to +7 V VI DC Input Voltage -0.5 to VCC + 0.5 V VO DC Output Voltage -0.5 to VCC + 0.5 V IIK DC Input Diode Current +20 mA IOK DC Output Diode Current +20 mA IO DC Output Source Sink Current Per Output Pin +35 mA CC or IGND DC VCC or Ground Current -50 mA PD Power Dissipation 500 mW Tstg Storage Temperature -65 to +150 o C Ambient Temperature -40 to +125 o C Package Includes :- 1 X 74HC366 Hex Inverting Buffer Line Driver IC (74366 IC) DIP-16 Package
