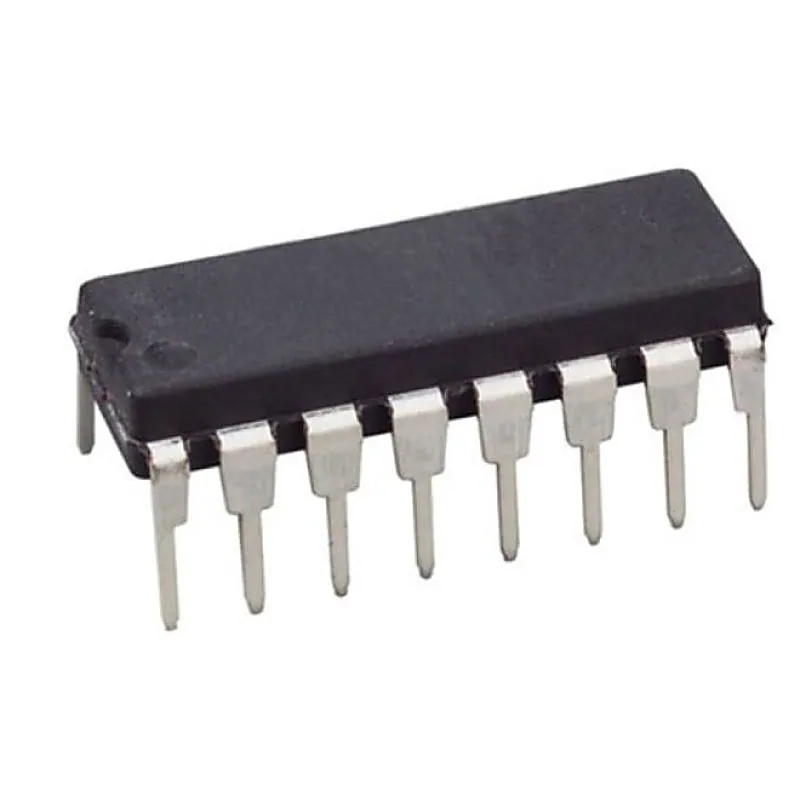

74HC368 Hex Inverting Buffer Line Driver IC (74368 IC) DIP-16 Package

The 74HC368; 74HCT368 is a hex inverting buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE). A HIGH on nOE causes the outputs to assume a high impedance OFF-state. Inputs include clamp diodes enable the use of current limiting resistors to interface inputs to voltages in excess of VCC. Features :- Wide supply voltage range from 2.0 to 6.0 V Input levels: For 74HC368: CMOS level For 74HCT368: TTL level CMOS low power dissipation High noise immunity Inverting 3-state outputs Complies with JEDEC standards JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V) Latch-up performance exceeds 100 mA per JESD 78 Class II Level B ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V Specified from -40 °C to +85 °C and -40 °C to +125 °C Specifications :- Symbol Parameter Min Max Unit VCC Supply Voltage -0.5 +7 V IIK input clamping current - +20 mA Iok output clamping current - +20 mA IO output current - +35 mA ICC supply current - 70 mA IGND ground current -70 - mA Tstg storage temperature -65 +150 °C Ptot total power dissipation - 500 mW Package Includes :- 1 X 74HC368 Hex Inverting Buffer Line Driver IC (74368 IC) DIP-16 Package
