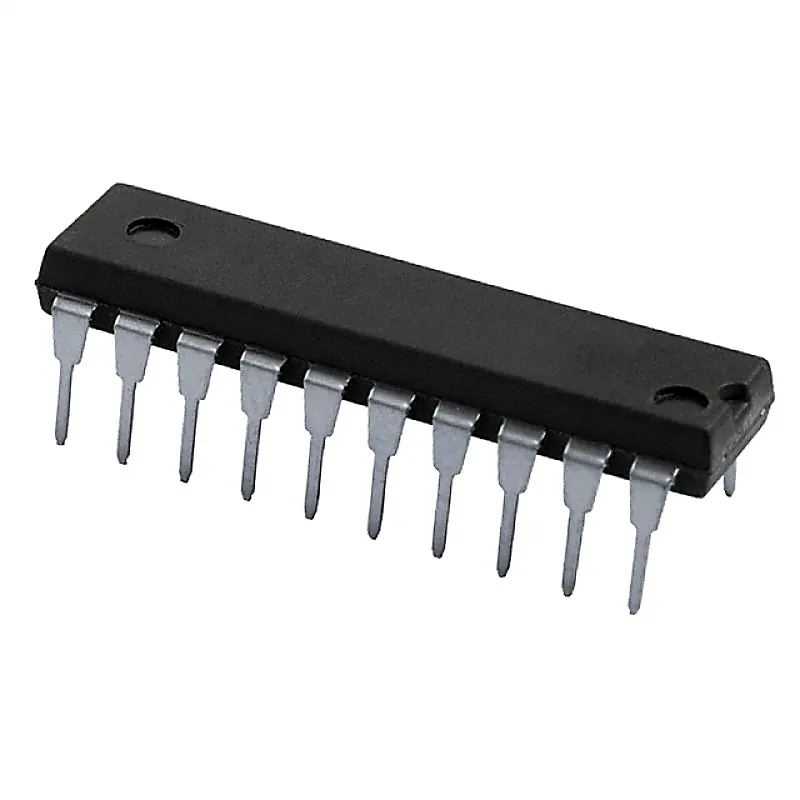

74HC374 3-State Output Octal D-Type Flip-Flop IC (74374 IC) DIP-20 Package

74HC374 is a 20 Pin 3-State output Octal D-Type Flip-Flop IC having 2V to 6V Operating Voltage range with 7.8mA output current and high noise immunity. It has the ability to drive 15 LS-TTL loads. Due to the large output drive capability and the 3-STATE feature, these devices are ideally suited for interfacing with bus lines in a bus organized system. The eight edge-triggered flip-flops enter data into their registers on the LOW to HIGH transition of clock (CP). The output enable (OE) controls the 3-state outputs and is independent of the register operation. When OE is HIGH, the outputs are in the high-impedance state. Specifications:- Package Type: DIP Voltage Rating: 2 to 6V Current Rating: 7.8mA output current Temperature Rating: -40 to 85 Deg C Number of Pins: 20 Propagation Delay: 20ns Frequency: 70MHz Datasheet:- 74HC374 IC Datasheet
