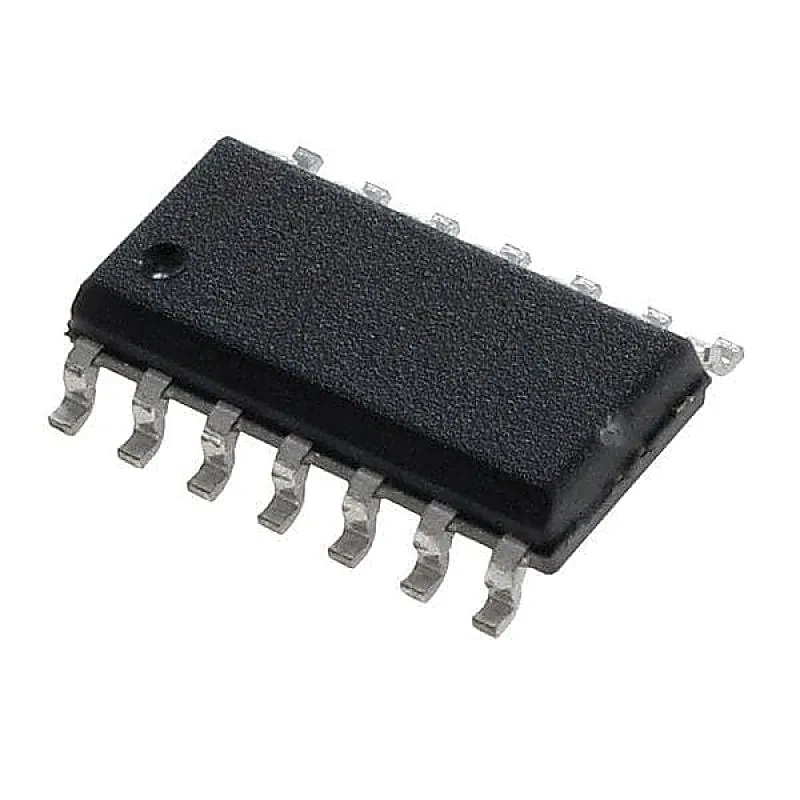

74HC4002 IC - (SMD Package) - Dual 4-input NOR Gate IC (744002 IC)
74HC4002 IC - (SMD Package) - Dual 4-input NOR Gate IC (744002 IC)
The 74HC4002; 74HCT4002 is a dual 4-input NOR gate. Inputs also include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC Features : Complies with JEDEC standard JESD7A Low-power dissipation Input levels: For 74HC4002: CMOS level For 74HC
+ 18% GST (added at checkout)
In stock — 2390 units ready
- Complies with JEDEC standard JESD7A
- Low-power dissipation
- Input levels:
- ESD protection:
- Multiple package options
- Specified from -40 °C to +80 °C and from -40 °C to +125 °C.
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The 74HC4002; 74HCT4002 is a dual 4-input NOR gate. Inputs also include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC Features : Complies with JEDEC standard JESD7A Low-power dissipation Input levels: For 74HC4002: CMOS level For 74HCT4002: TTL level ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V Multiple package options Specified from -40 °C to +80 °C and from -40 °C to +125 °C. Specifications :- Symbol Parameter Min Max Unit VCC Supply Voltage -0.5 +7 V IIK input clamping current - +20 mA Iok output clamping current - +20 mA IO output current - +25 mA ICC supply current - 50 mA IGND ground current -50 - mA Tstg storage temperature -65 +150 °C Ptot total power dissipation - 500 mW Package Includes :- 1 X 74HC4002 IC - (SMD Package) - Dual 4-input NOR Gate IC (744002 IC)
