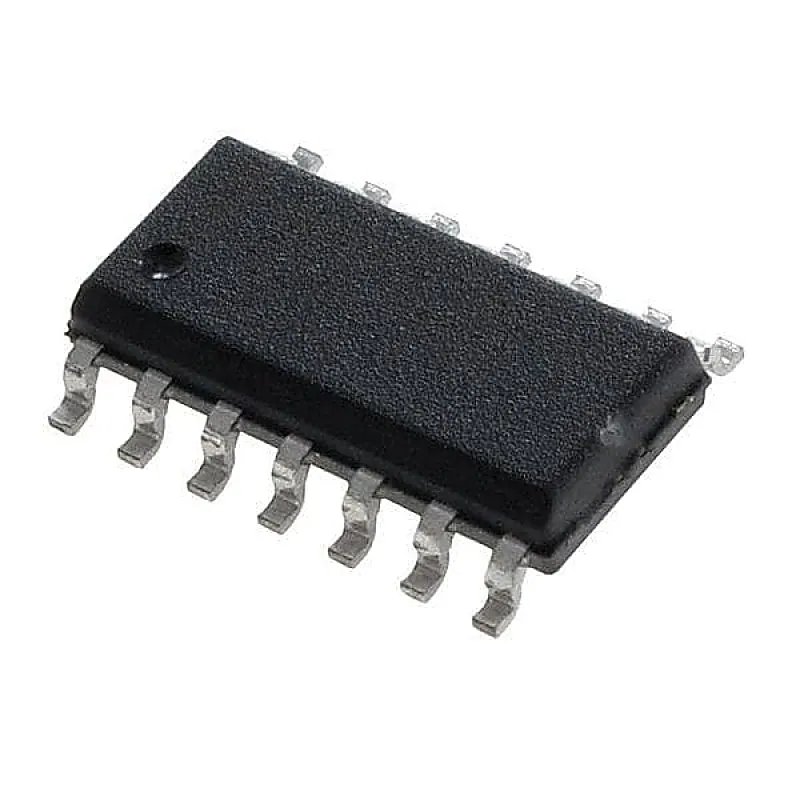

74HC4066 IC - (SMD Package) - Quadruple Bilateral Analog Switch IC (744066)

74HC4066 Quadruple Bilateral Analog Switch IC (744066) DIP-14 Package The 74HC4066; 74HCT4066 is a quad single pole, single throw analog switch. Each switch features two input/output terminals (nY and nZ) and an active HIGH enable input (nE). When nE is LOW, the analog switch is turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Features:- Input levels nE inputs: For 74HC4066: CMOS level For 74HCT4066: TTL level Low ON resistance: 50 Ω (typical) at VCC = 4.5 V 45 Ω (typical) at VCC = 6.0 V 35 Ω (typical) at VCC = 9.0 V Specified in compliance with JEDEC standard no. 7A ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V Multiple package options Specified from 40 C to +85 C and 40 C to +125 C Symbol Parameter Min Max Unit VCC Supply Voltage -0.5 +7 V IIK input clamping current - +20 mA ISK output clamping current - +20 mA ISW switch current - +25 mA ICC supply current - 50 mA IGND ground current -50 - mA Tstg storage temperature -65 +150 °C Ptot total power dissipation - 500 mW Package Includes:- 1 X 74HC4066 IC - (SMD Package) - Quadruple Bilateral Analog Switch IC (744066)
