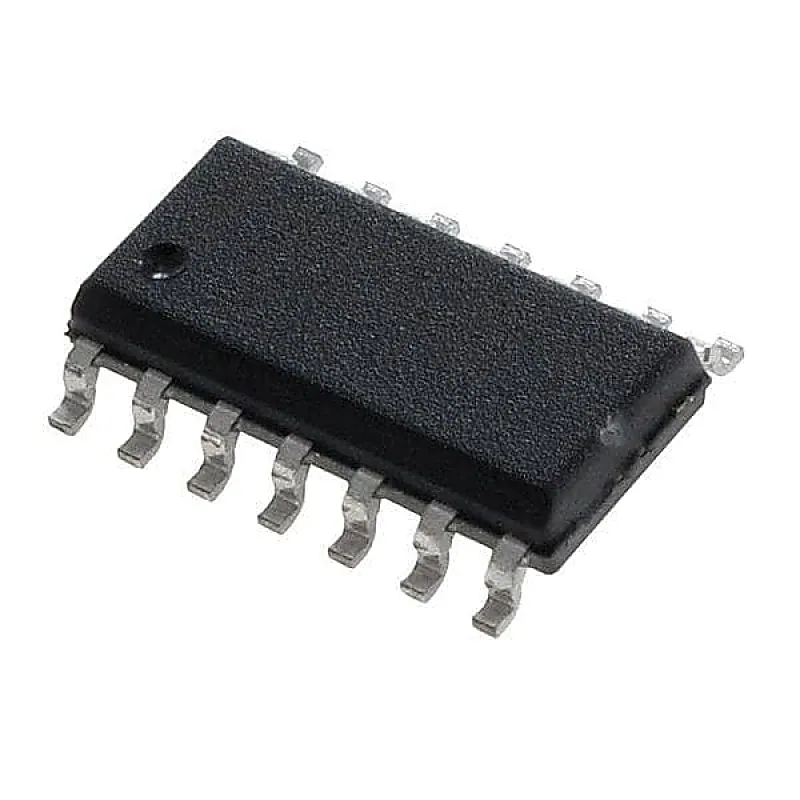

74HC4072 IC - (SMD Package) - High Speed CMOS Dual 4-Input OR Gate IC (744072)

74HC4072 High Speed CMOS Dual 4-Input OR Gate IC (744072) DIP-14 Package The 74HC4072 is a high speed CMOS DUAL 4-INPUT OR GATE fabricated in silicon gate C2 MOS technology. It has the same highspeed performance of LSTTL combined with true CMOS low power consumption. The internal circuit is composed of 3 stages including buffer output, which gives high noise immunity and stable output. All inputs are equipped with protection circuits against static discharge and transient excess voltage. Features:- HIGH SPEED tPD = 9 ns (TYP.) AT VCC =5V LOW POWER DISSIPATION ICC = 1 µA (MAX.) AT TA = 25 °C HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS SYMMETRICAL OUTPUT IMPEDANCE |IOH|=IOL = 4 mA (MIN.) BALANCED PROPAGATION DELAYS tPLH = tPHL WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V PIN AND FUNCTION COMPATIBLE WITH 4072B Symbol Parameter Min Max Unit VCC Supply Voltage -0.5 +7 V VI DC Input Voltage -0.5 +0.5 V VO DC Output Voltage -0.5 +0.5 V IOK DC VCC or Ground Current - +20 mA PD Power Dissipation - 500 mA IGND ground current +50 - mA Tstg storage temperature -65 +150 °C TL Lead Temperature (10 sec) - 300 °C Package Includes:- 1 X 74HC4072 IC - (SMD Package) - High Speed CMOS Dual 4-Input OR Gate IC (744072)
