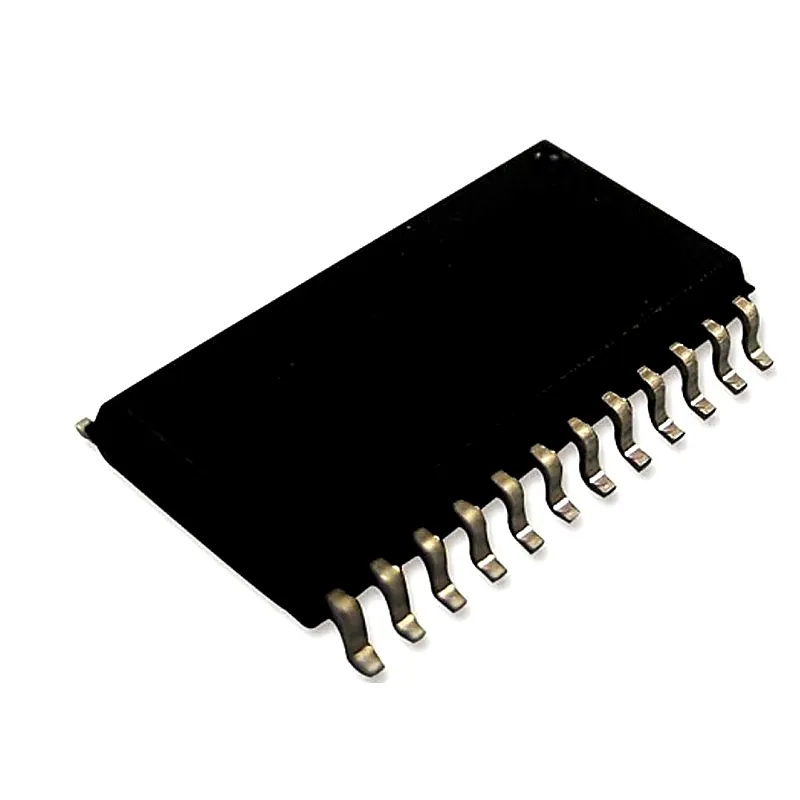

74HC4514 IC - (SMD Package) - 4-to-16 line Decoder/Demultiplexer with input latches IC (744514 IC)

The 74HC4514 is a 4-to-16 line decoder/demultiplexer having four binary weighted address inputs (A0 to A3), with latches, a latch enable input (LE), an enable input (E) and 16 outputs (Q0 to Q15). When LE is HIGH, the selected output is determined by the data on An. When LE goes LOW, the last data present at An are stored in the latches and the outputs remain stable. When E is LOW, the selected output, determined by the contents of the latch, is HIGH. At E HIGH, all outputs are LOW. The enable input E does not affect the state of the latch. When the device is used as a demultiplexer, E is the data input and A0 to A3 are the address inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Features:- • Input levels: – For 74HC4514: CMOS level – For 74HCT4514: TTL level • 16-line demultiplexing capability • Decodes 4 binary-coded inputs into 16 mutually-exclusive outputs • Complies with JEDEC standard no. 7 A • ESD protection: – HBM JESD22-A114F exceeds 2000 V – MM JESD22-A115-A exceeds 200 V • Multiple package options • Specified from -40 °C to +85 °C and -40 °C to +125 °C Applications:- • Digital multiplexing • Address decoding • Hexadecimal/BCD decoding Specification:- Symbol Parameter Value Unit VCC Supply Voltage − 0.5 to + 7.0V V IOK Output Clamping Current ± 20 mA IIK Input Clamping Current ± 20 mA IO Output Current ± 25 mA ICC Supply Current ± 50 mA IGND Ground Current ± 50 mA TSTG Storage Temperature Range − 65°C to + 150 °C Ptot Total Power Dissipation 500 mW Related Document:- 74HC4514 SMD Data Sheet
