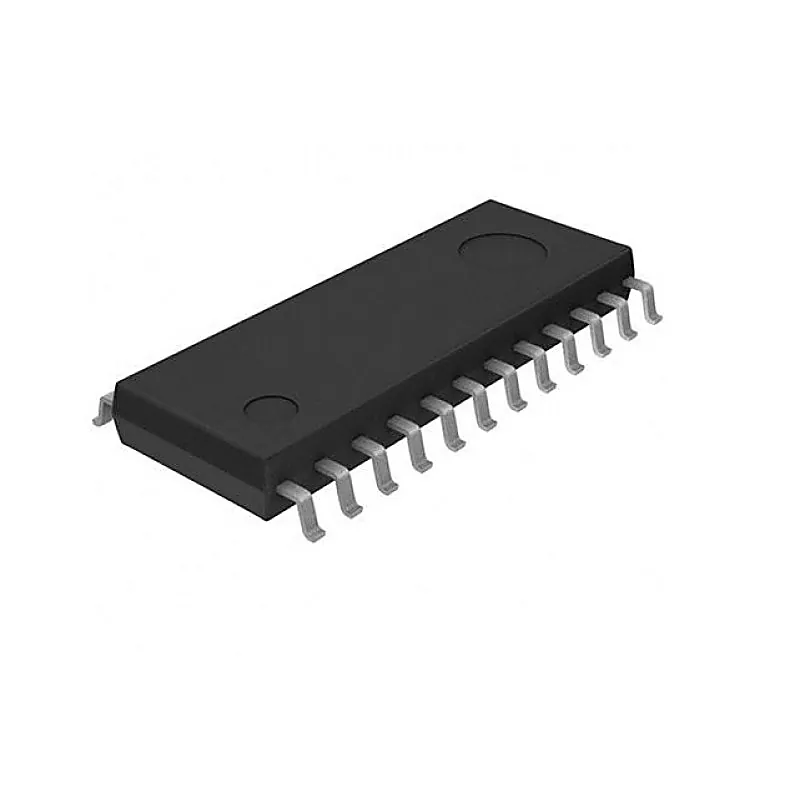

74HC4515 IC - (SMD Package) - 4-to-16 line Decoder/Demultiplexer with Latch IC (744515)

The 74HC4515 is a 4-to-16 line decoder/demultiplexer having four binary weighted address inputs (A0 to A3) with latches, a latch enable input (LE), an enable input (E) and 16 inverting outputs (Q0, to Q15). When LE is HIGH, the selected output is determined by the data on An. When LE goes LOW, the last data present at An are stored in the latches and the outputs remain stable. When E is LOW, the selected output, determined by the contents of the latch, is LOW. When E is HIGH, all outputs are HIGH. The enable input E does not affect the state of the latch. When the device is used as a demultiplexer, E is the data input and A0 to A3 are the address inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Features:- Inverting outputs :CMOS input levels 16-line demultiplexing capability Decodes 4 binary-coded inputs into 16 mutually-exclusive outputs Complies with JEDEC standard no. 7 A ESD protection: – HBM JESD22-A114F exceeds 2000 V – MM JESD22-A115-A exceeds 200 V Specified from -40 °C to +85 °C and -40 °C to +125 °C Specifications:- Symbol Parameter Conditions Min Typ Max Unit VCC Supply Voltage 2 5 6 V VI Input Voltage 0 VCC V VO Output Voltage 0 VCC V Δt/ΔV Input Transition Rise and Fall Rate VCC = 2.0 V 625 ns/V VCC = 4.5 V 1.67 139 ns/V VCC = 6.0 V 83 ns/V TAMB Ambient Temperature -40 125 °C Package includes:- 1 X 74HC4515 IC - (SMD Package) - 4-to-16 line Decoder/Demultiplexer with Latch IC (744515)ge
