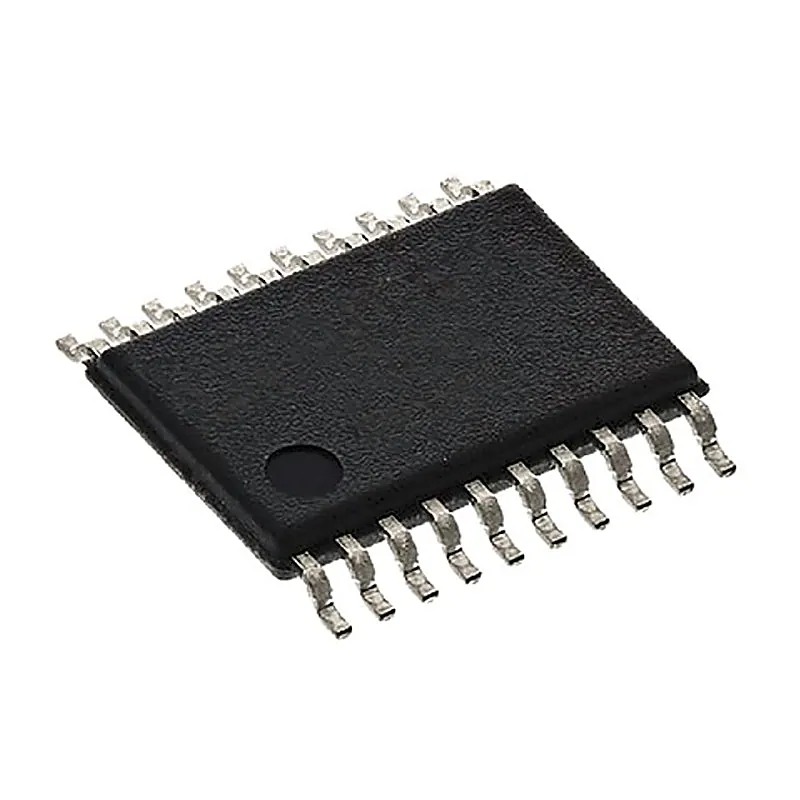

74HC540 IC - (SMD Package) - Octal 3-state Inverting Buffer IC (74540 IC)

The 74HC540 is identical in pinout to the LS540. The device inputs are compatible with Standard CMOS outputs. External pull−up resistors make them compatible with LSTTL outputs. The HC540A is an octal inverting buffer/line driver/line receiver designed to be used with 3−state memory address drivers, clock drivers, and other bus−oriented systems. This device features inputs and outputs on opposite sides of the package and two ANDed active−low output enables. Features:- • Output Drive Capability: 15 LSTTL Loads • Outputs Directly Interface to CMOS, NMOS, and TTL • Operating Voltage Range: 2.0 to 6.0 V • Low Input Current: 1 A • High Noise Immunity Characteristic of CMOS Devices • In Compliance With the JEDEC Standard No. 7 A Requirements • Chip Complexity: 124 FETs or 31 Equivalent Gates • NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable • These Devices are Pb−Free and are RoHS Compliant Specification:- Symbol Parameter Value Unit VCC Supply Voltage − 0.5 to + 7.0V V VI DC Input Voltage –0.5 to VCC + 0.5 V VO DC Output Voltage −0.5 ≤ VO ≤ VCC + 0.5 V IIK DC Input Diode Current ±20 mA IOK DC Output Diode Current ±35 mA IO Output Current ± 35 mA ICC or IGND DC VCC or GND Current, per pin ± 75 mA TSTG Storage Temperature Range − 65°C to + 150 °C PD Power Dissipation 500 mW TL Lead Temperature 260 °C Related Document:- 74HC540 SMD Data Sheet
